PET and Galvanised Woven Gabion Baskets / Reno Mattress

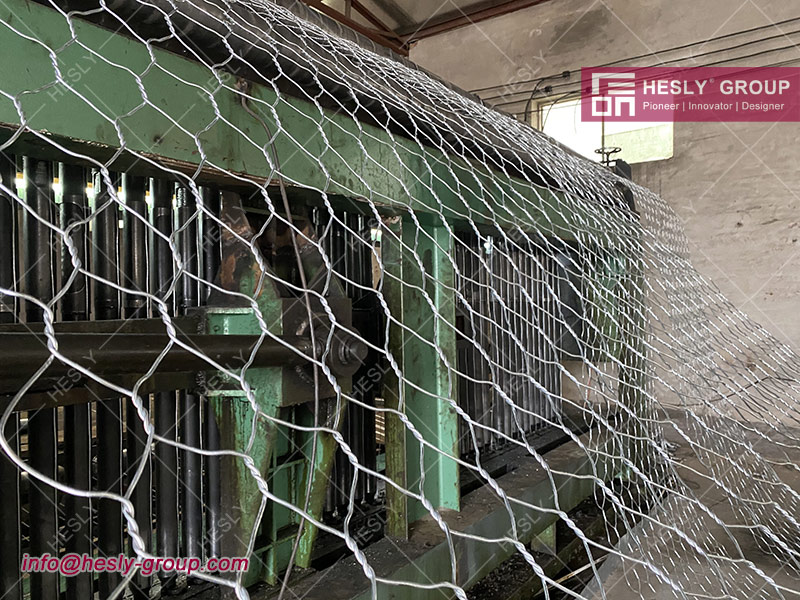

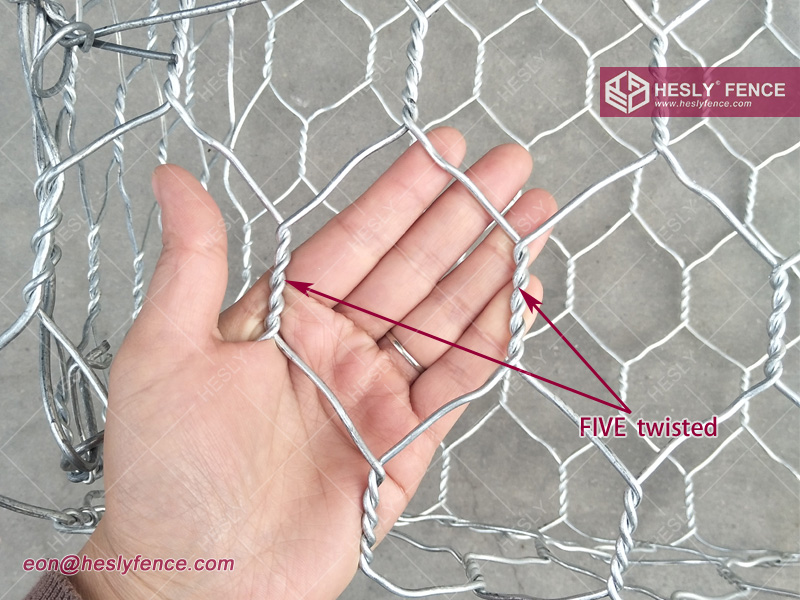

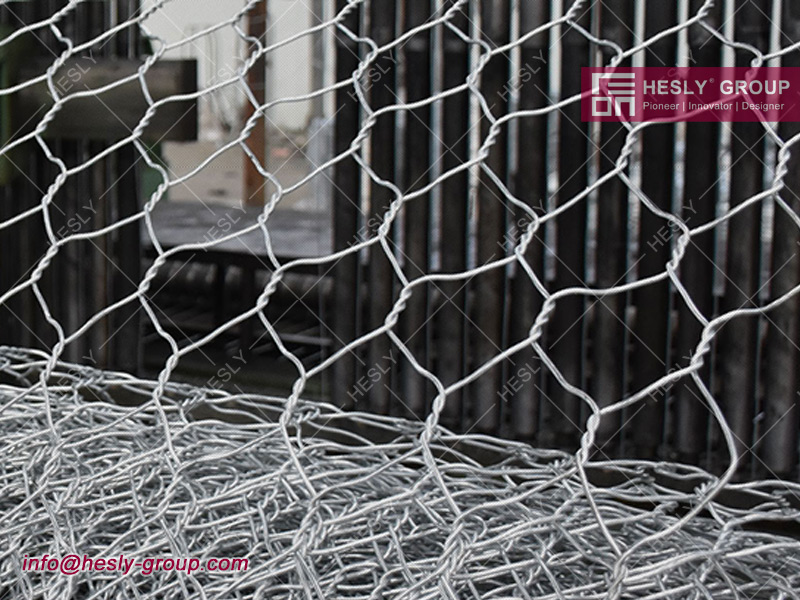

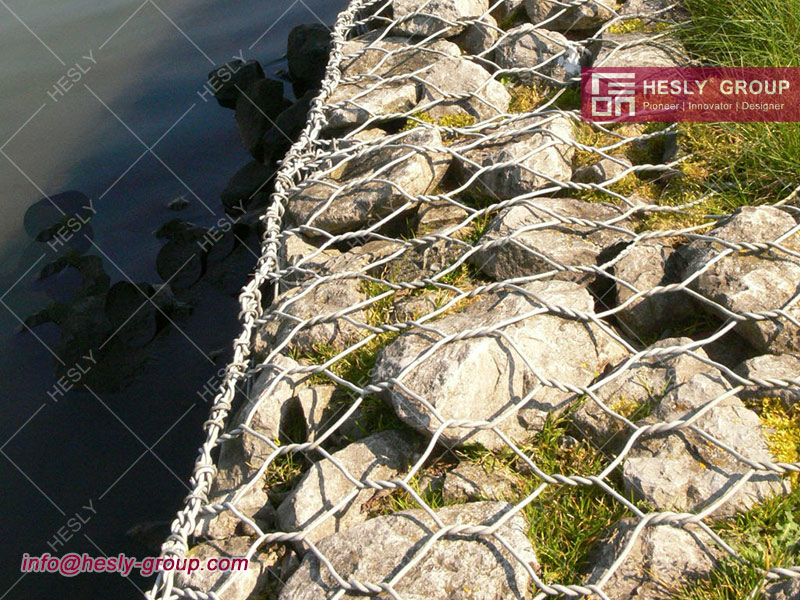

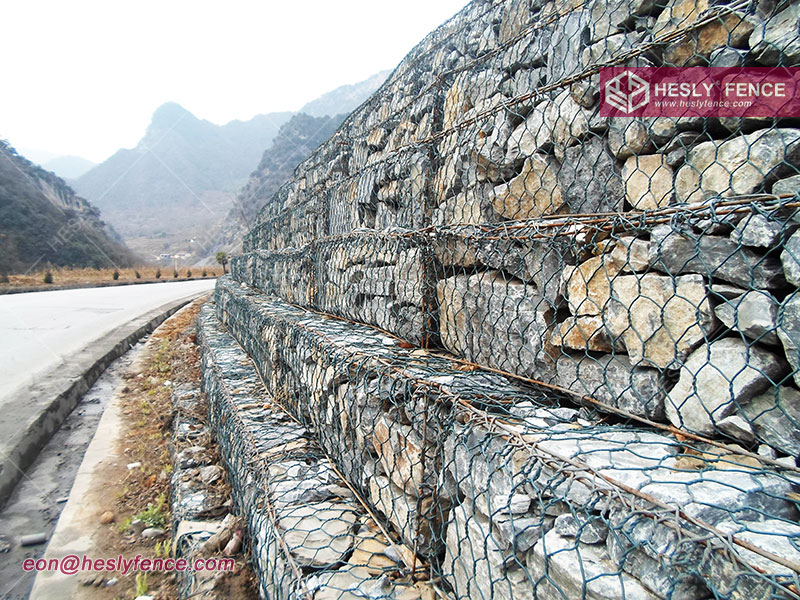

Woven gabions are hexagonal woven mesh panels made out of various corrosive resistant materials such as ordinary galvanised coated steel wire, Galfan/Zn-Al alloy steel wire and Polyester Wire. This type of gabions are attached together through interlacing wires. Unlike welded gabions, woven gabions have no welding points and rely solely on its structure to support the force applied on the gabion. It has high tensile strength that is used for different heavy duty applications. Such applications, but not limited to, are bank protection and flood controlling applications. Advantages of using a woven gabion is that its edges will not unzip easily, it can be installed quickly and easily, it is deformable and can accommodate the needed special space, and the galvanized wire would not let it rust easily even when exposed to water.
Standard & Common Specifications

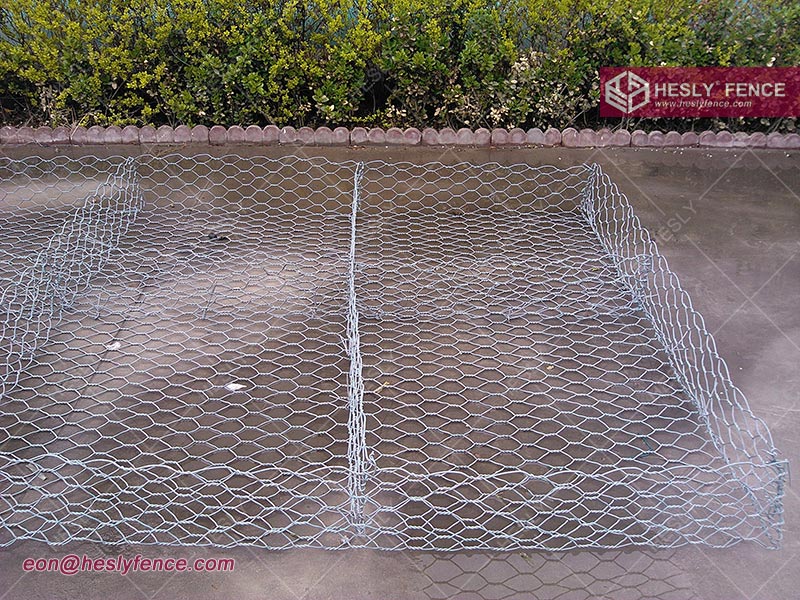

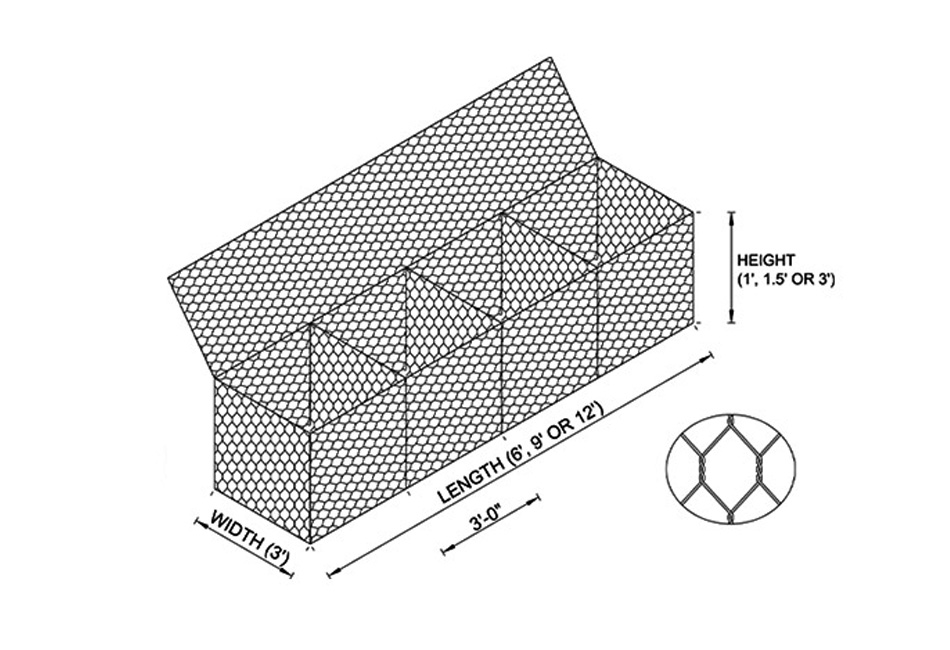

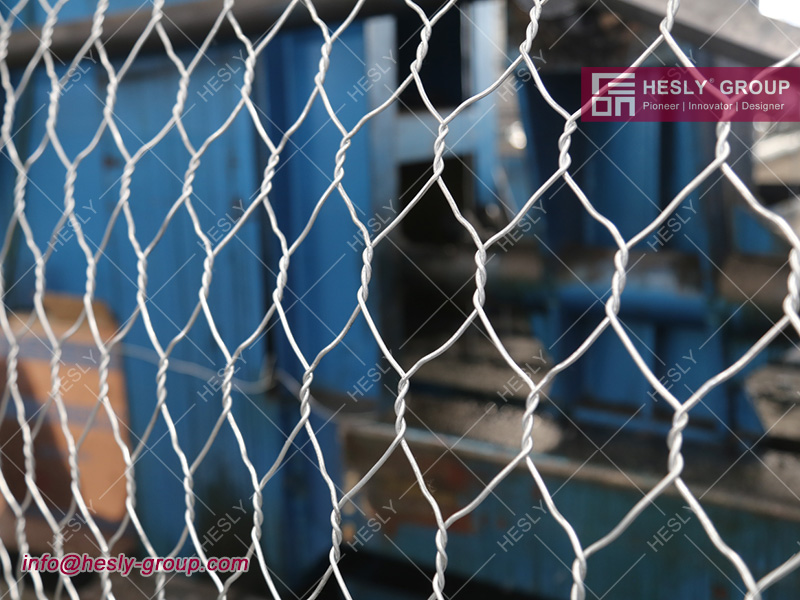

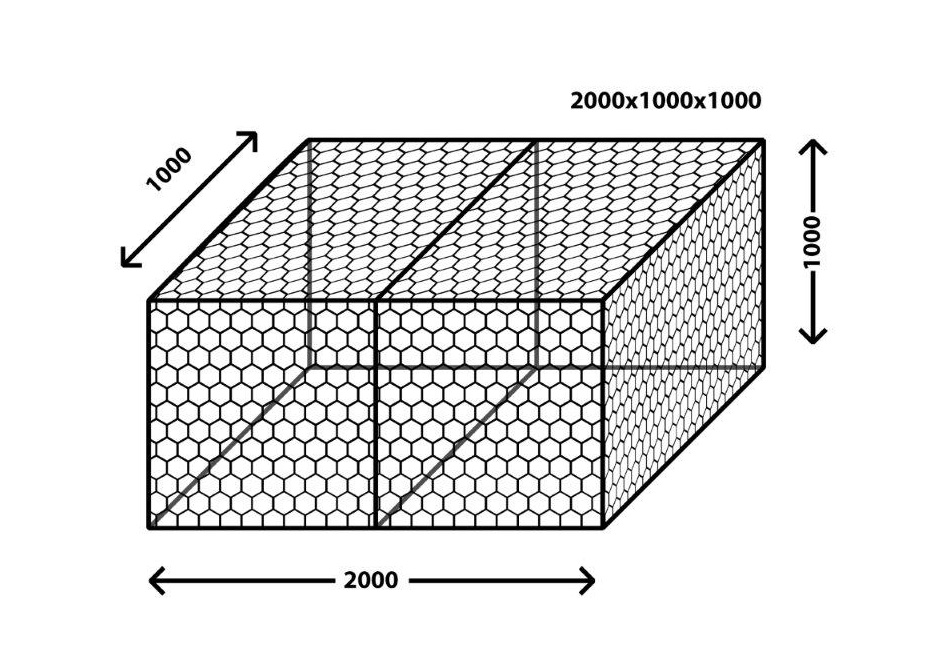

Gabion Mesh Box is available in a variety of different specs, including wire thickness, opening size, box dimension and material grade. Consisting of hexagonal wire mesh, gabion box is divided into cells with diagrams in 1 meter or 3ft intervals. The diagram reinforces the structures of gabion box.
 |
 |
We follow the major international standard in our manufacturing process.
International Standard

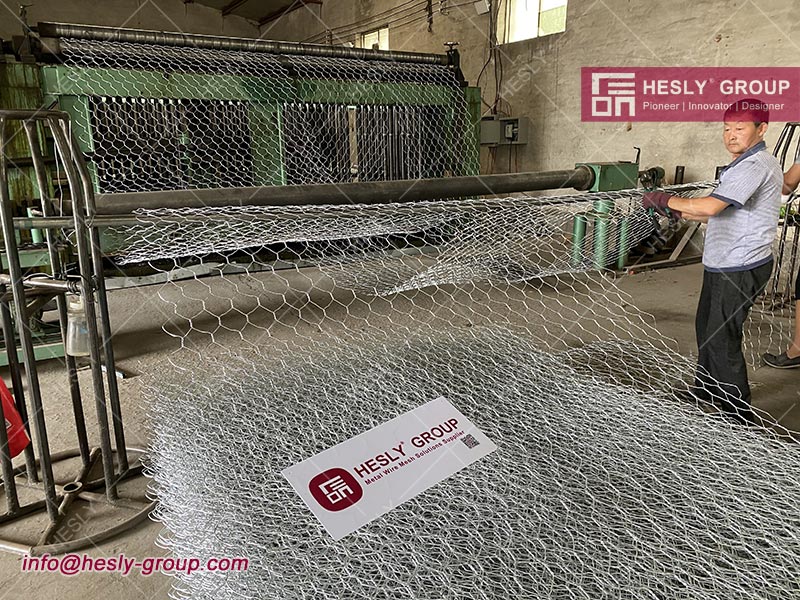

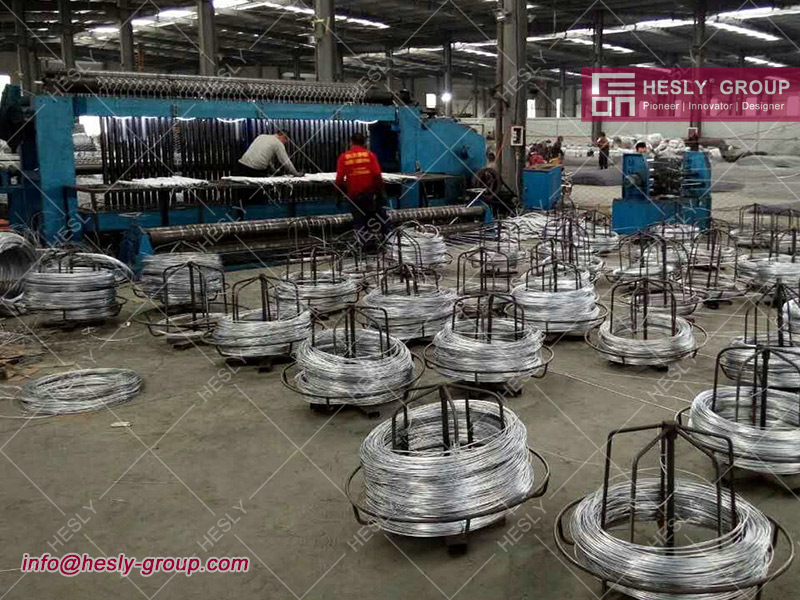

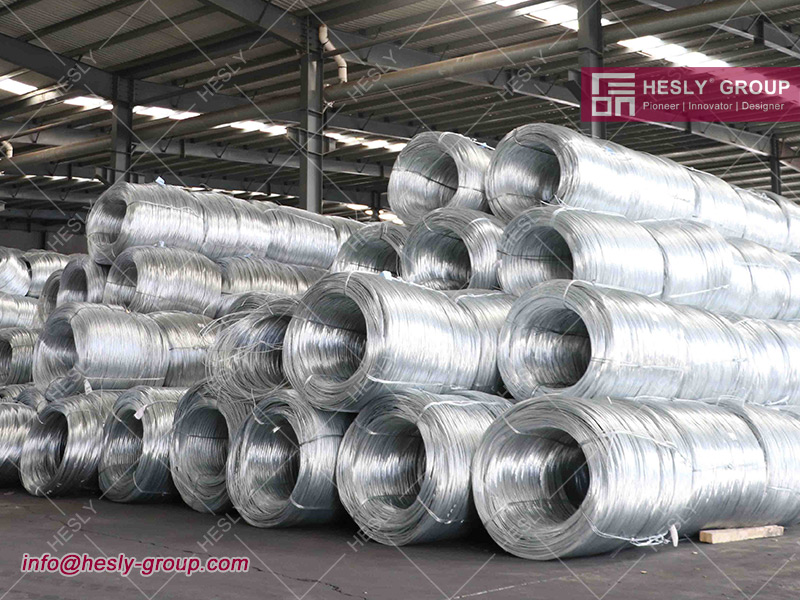

The basic raw material is low carbon steel wire drawn from wire rod. As per customers’ requirements, wire will be galvanized or coated with PVC before weaving. Different material grade decides the quality of chain link significantly. We have the following wire quality available in our production.
ASTM Standard
- A975 - 11 Standard Specification for Double–Twisted Hexagonal Mesh Gabions and Revet Mattresses
- A641 / A641M - 09a Standard Specification for Zinc–Coated (Galvanized) Carbon Steel Wire
- A856 / A856M - 03 Standard Specification for Zinc-5% Aluminum-Mischmetal Alloy-Coated Carbon Steel Wire
BS Standard
- BS EN 10223-2 Steel wire and wire products for fencing and netting. Hexagonal steel wire netting for agricultural, insulation and fencing purposes
- BS EN 10223-3 Steel Wire And Wire Products For Fencing And Netting - Part 3: Hexagonal Steel Wire Mesh Products For Civil Engineering Purposes
- BS EN 10244-2 Steel wire and wire products. Non-ferrous metallic coatings on steel wire. Zinc or zinc alloy coatings

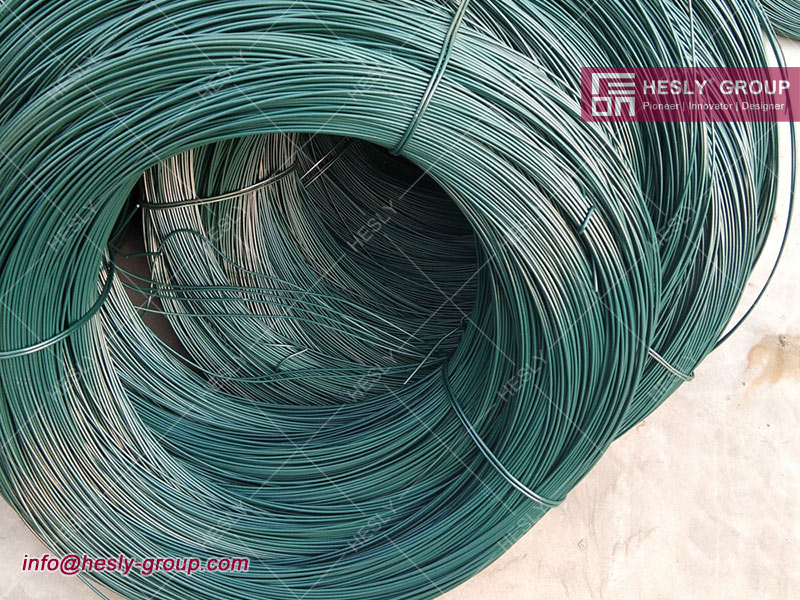

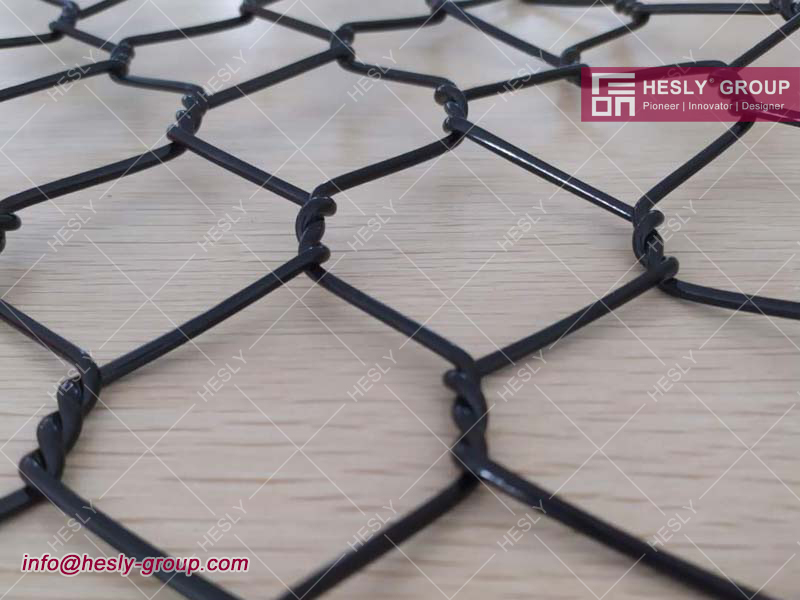

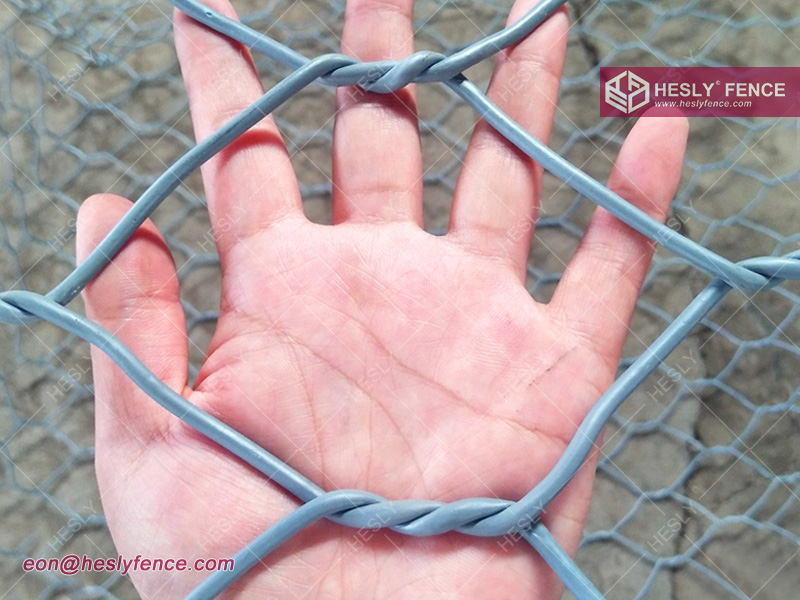

PVC Coated Steel Wire Standard

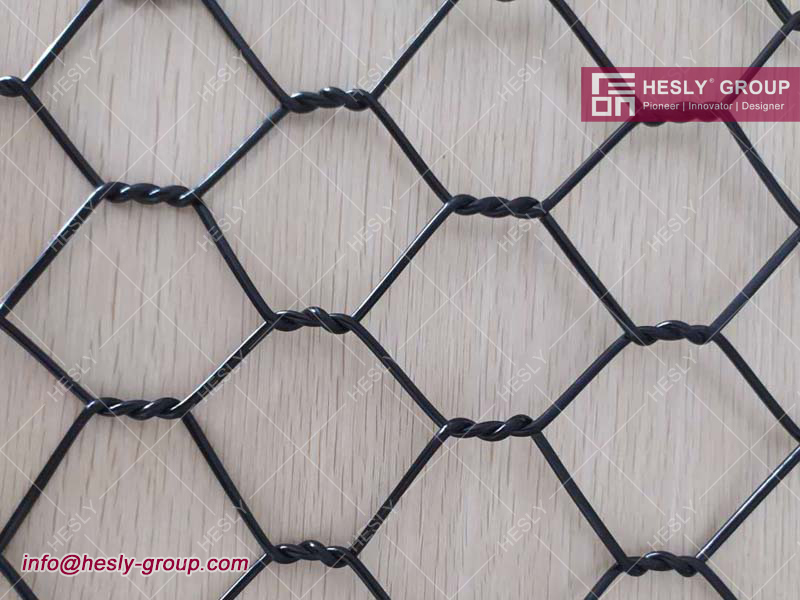

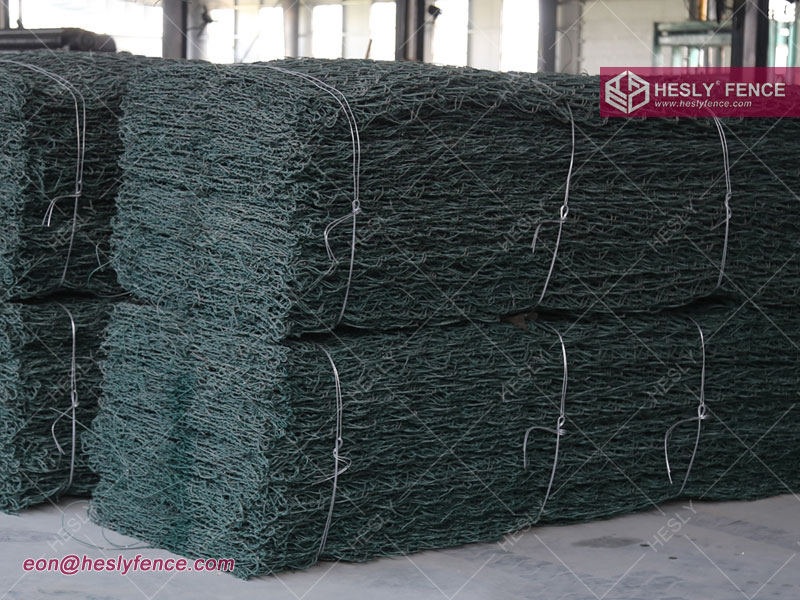

Galfan Coated Gabion Box with PVC Sleeve
- Colour: grey-RAL 7037, according to ASTM D2244 - 16.
- Specific weight: between 1.30 and 1.35 dN/dm3, according to ASTM D792 - 13.
- Hardness: between 50 and 60 Shore D, according to ASTM D2240 - 15e1.
- Tensile strength: not less than 210 dN/cm2, according to ASTM D412 - 16.
- Elongation: between 200% and 280%, according to ASTM D412 - 16.
- Weight loss: less than 5% after 24 hours at 105 °C, according to ASTM D2287 - 12.
- Residual ashes: less than 2%, according to ASTM D2124 - 99.
Artificial Ageing Tests
- Salt spray test: test period 1500 hours, test method ASTM B117 - 16.
- Exposure to UV rays: test period 2000 hours at 63 °C, test method ASTM D1499 - 13 and ASTM G152 - 13 apparatus type E; exposure to high temperatures: test period 24 hours at 105 °C, test method ASTM D1203 - 16 and ASTM D2287 - 12.
Quotation Required Information
When requesting a supply quotation, please specify:- Size of Units (Length × Width × Height)

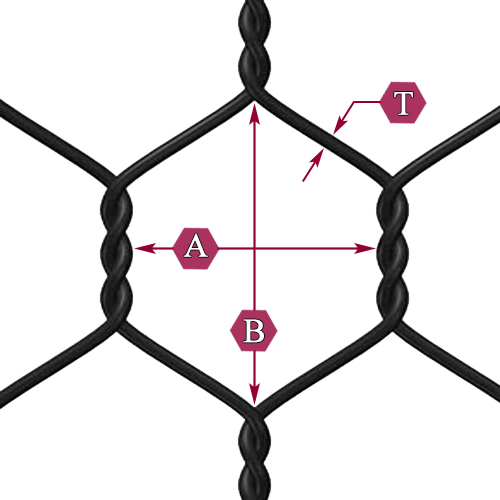

- Type of Mesh Opening

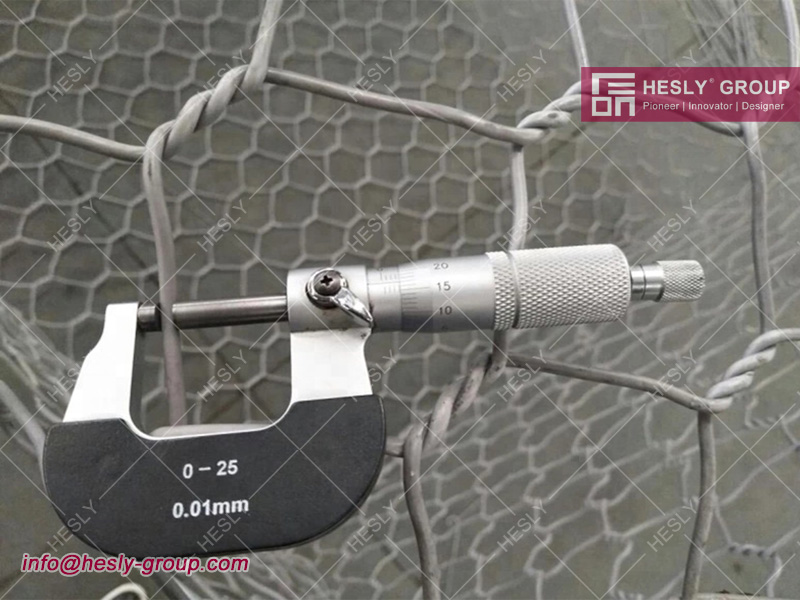

- Wire Dia.
- Type of Coating
