868 Decorative Garden Fence | Pedestrian Fencing

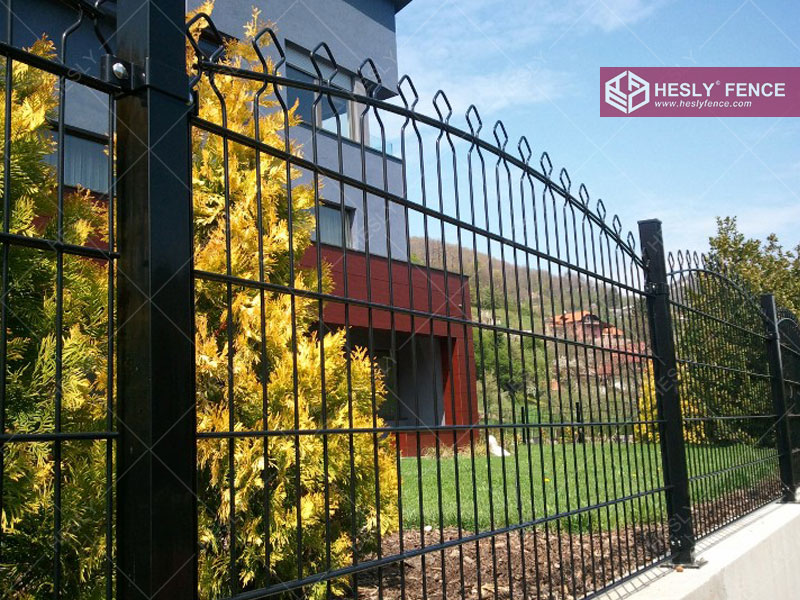

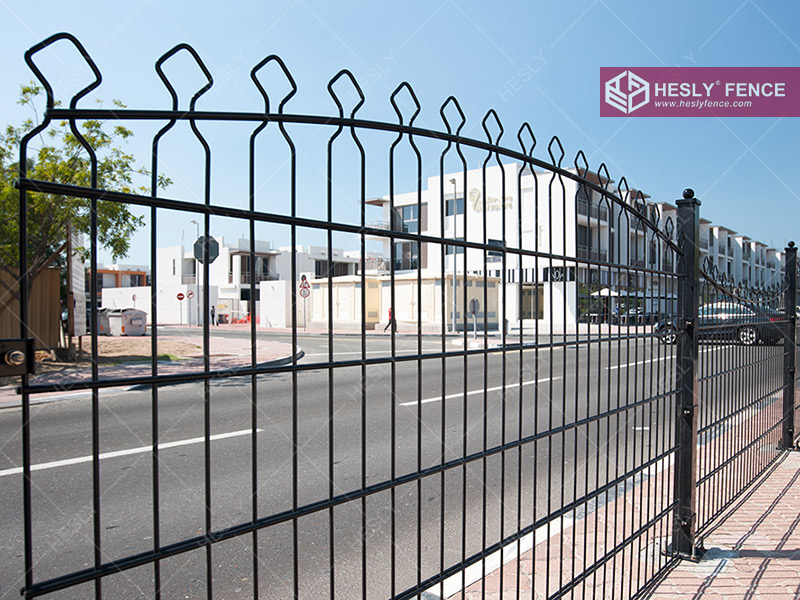

The 868 Decorative Fence system is a complete decorative fencing system (including single and double gates) developed for design-oriented and rigid fencing solutions. When rigidity and an attractive design are required, 868 mesh fencing is the answer. It is quick to install.

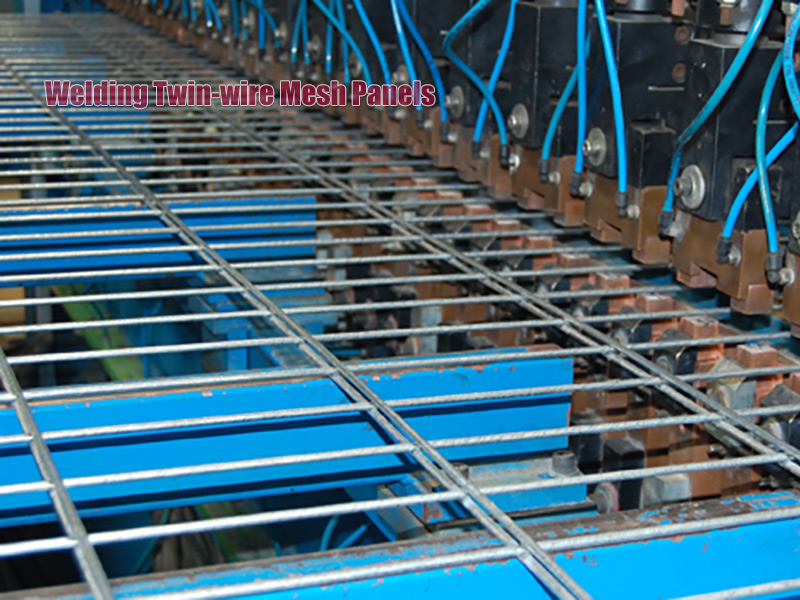

Twin-Wire Mesh Panels

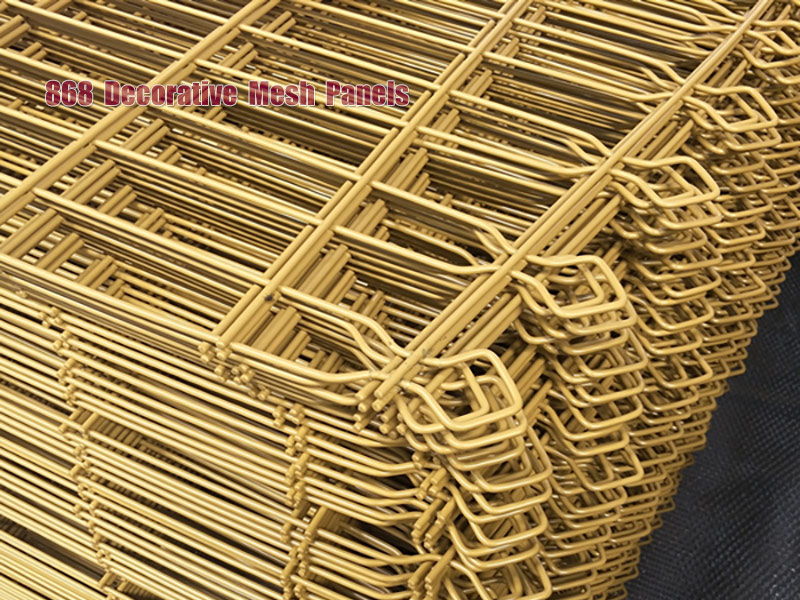

The 868/656 decorative mesh panels are made out of a heavy welded fence, 2015 mm wide and available in 4 heights.
The popular mesh size is 200 x 65 mm.
The wires of double wire are very strong: horizontal double wires 8 mm and vertical 6 mm.
Double Wire Fence Post

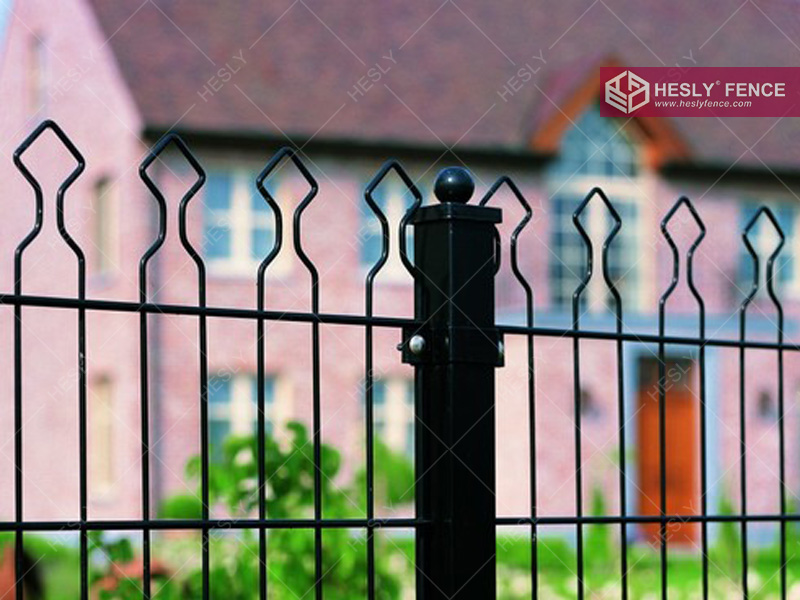

The posts for our decorative fencing are welded square tubular posts with a profile of 60 x 60 x 1.50 mm. For a decorative design, the posts are supplied with a metal cap with a ball. Fixation of the panels to the posts using metal fixing collars (galvanized and plastic coated) and with security bolts M8 out of stainless steel with a self-breaking nut.
Baseplates, sold separately, are available in order for you to install your post on a concrete base, when needed. For large quantities, you can also ask for specific posts with welded base plates
GATES
The double wire decorative fencing system can easily be combined with single and double swing gates.
Coating Technique and Colors
|
PRE-GALVANISED Cost effective, strong and durable All hesly welded mesh panels are pre galvanized |
|
|
|
POLYESTER POWDER UV resistant, durable, beats rust, appealing aesthetic Polyester powder coating available as a final finish to all pre-galvanised wire mesh panels and components |
|
|
|
PVC COATED
Corrosion protection, resistance to high UV, intense heat, salt and sand abrasion, impact damage, graffiti damage Cosmetic appearance |
|
|
|
HOT DIP GALVANISED For coastal and highly corrosive environments The entire finished product emerges from the molten tank fully coated with a layer of zinc The thickness of the zinc coating (average coating fabrication) — 80μm |
Colors
The popular polyester powder color listed below. More and other colors out of RAL Collection are available on request.
|
|
|
|
|
|
Dark Green |
Grey |
Tomato Red |
Traffic Orange |
Traffic Yellow |
Gentian Blue |
|
|
|
|
|
|
Steel Blue |
Traffic Red |
Mint Green |
Black |
Signal Blue |
Pastel Turquoise |
|
|
|
|
|
|
Luminous Yellow |
Pure White |
Other color is available |
|
|
