PVC（Polyvinyl chloride) & PE ( polyethylene ) are the most popular coating materials due to their physical & chemical aspects. PVC is the best optimal materials due to it’s economic strength together with superior befefits such as fire & heat resistance, softness & egongating ., etc. So the Barbed Wire made of PVC coated wire are more better capacity of corrosion resistant and can be made into various of color to enhance your artistic fence.

General Specification Sheet

Material: Materials: Q195 and Q235 or high tensile steel wire
Surface Treatment: Hot dipped Galvanized, Electro galvanized and PVC coated
Tensile Strength:
Soft: 380–550 N/mm2
High tensile: 800–1200 N/mm2
Package: Pallet package and bulk package

PVC Coated Barbed Wire

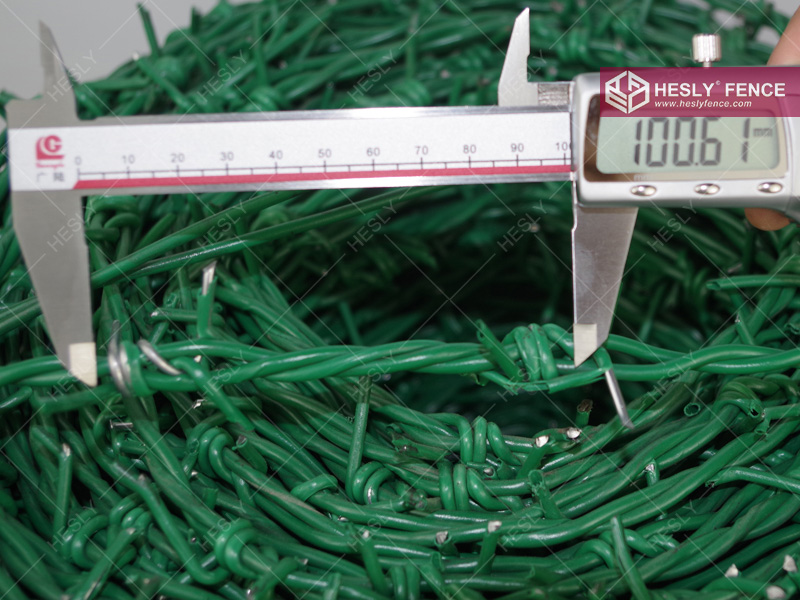

Wire Diameter		Barbs distance	Barb length
Before coating	After coating
1.0–3.5 mm	1.4–4.0 mm	75–150 mm	15–30 mm
BWG 20 – BWG 11	BWG 17 – BWG 8
PVC coating thickness: 0.4–0.6 mm; different colors or length are available at customers request

Barbed Wire Specification
Type	Wire Gauge (SWG)		Barb Distance (cm)	Barb Length (cm)
Galvanized Barbed Wire	10# x 12#		7.5-15	1.5-6
	12# x 12#
	12# x 14#
	14# x 14#
	14# x 16#
	16# x 16#
	16# x 18#
PVC coated barbed wire; PE barbed wire	before coating	after coating	7.5-15	1.5-6
	1.0mm-3.5mm	1.4mm-4mm
	BWG11#-20#	BWG8#-17#
	SWG11#-20#	SWG8#-17#
PVC/PE coating thickness: 0.4mm-0.6mm; Different colors or length are available at customers request. Weight of packing in coil: 16kg/coil, 25kg/coil, 50kg/coil as standard.

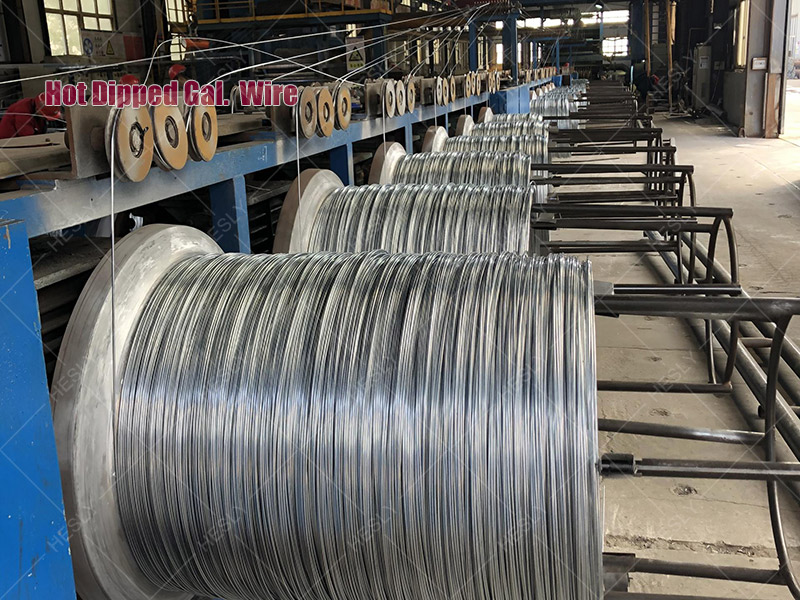

1. Material: Galvanised Steel Wire

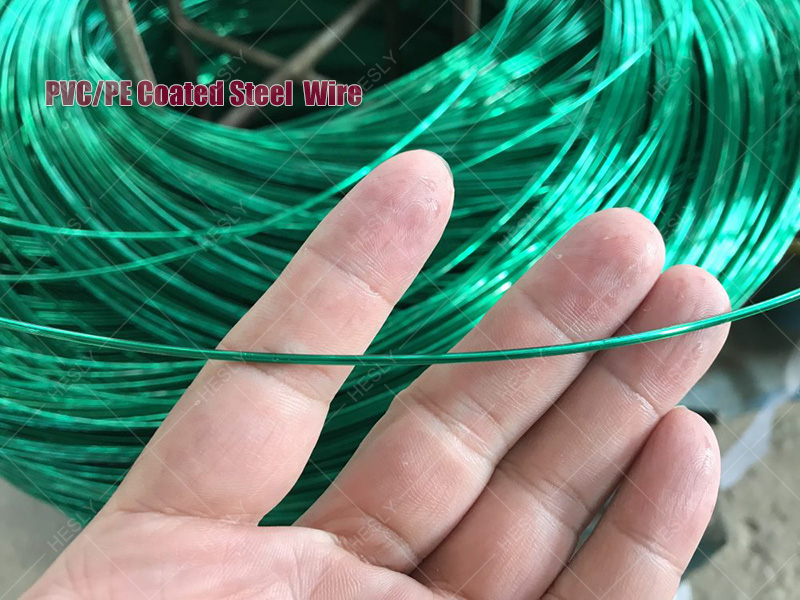

2. Material: PVC coated Wire

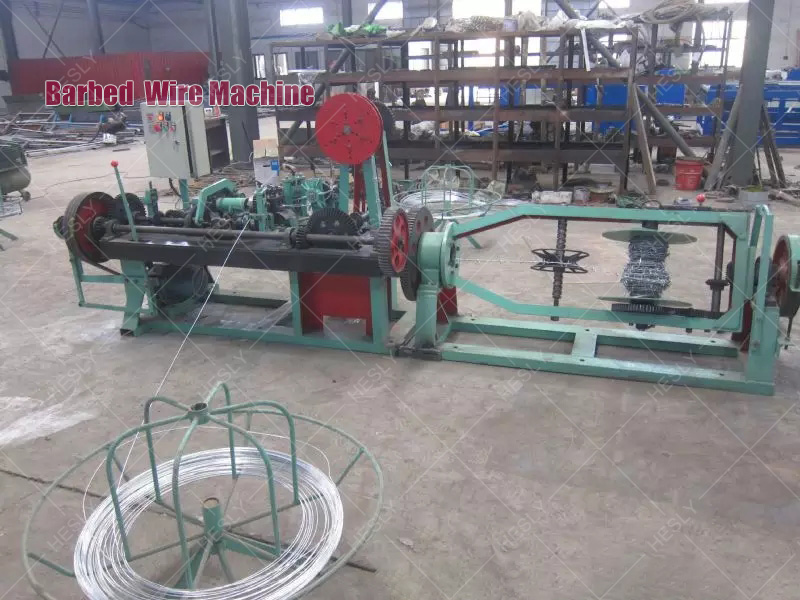

3. Barbed Wire Machine

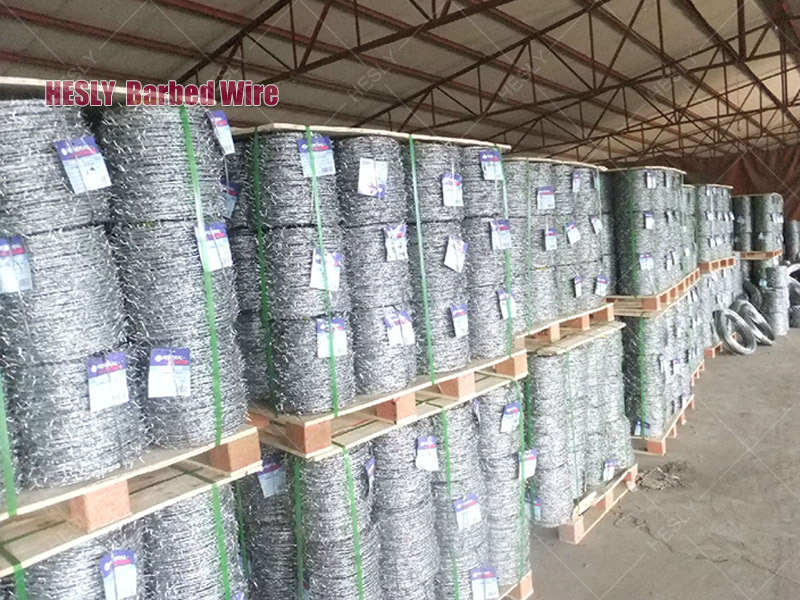

4. Galvanised Barbed Wire

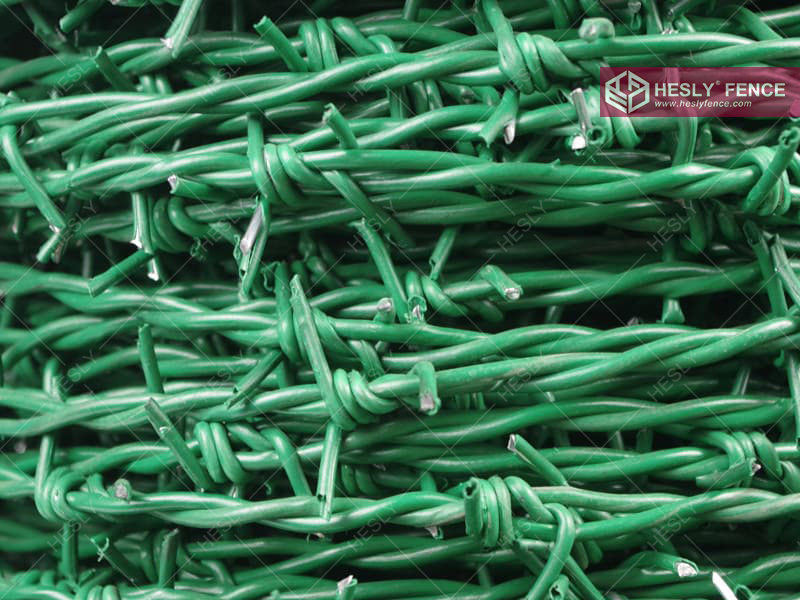

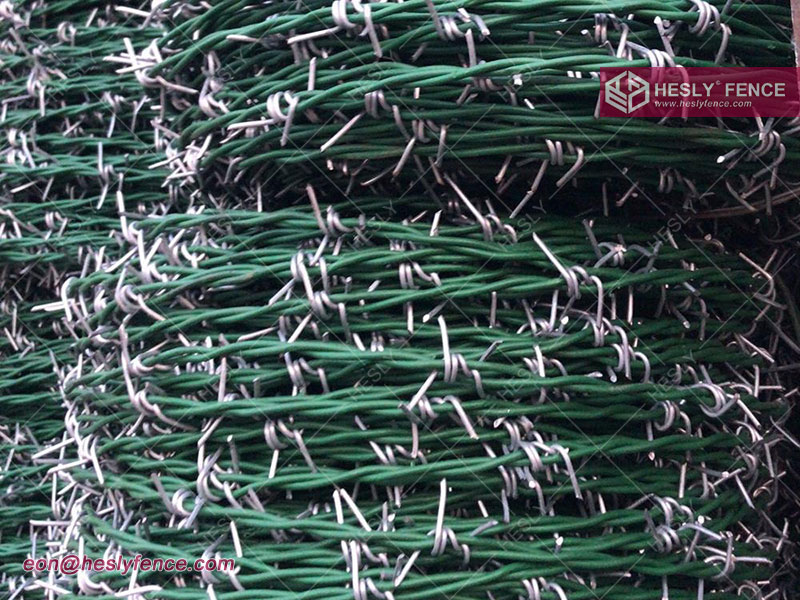

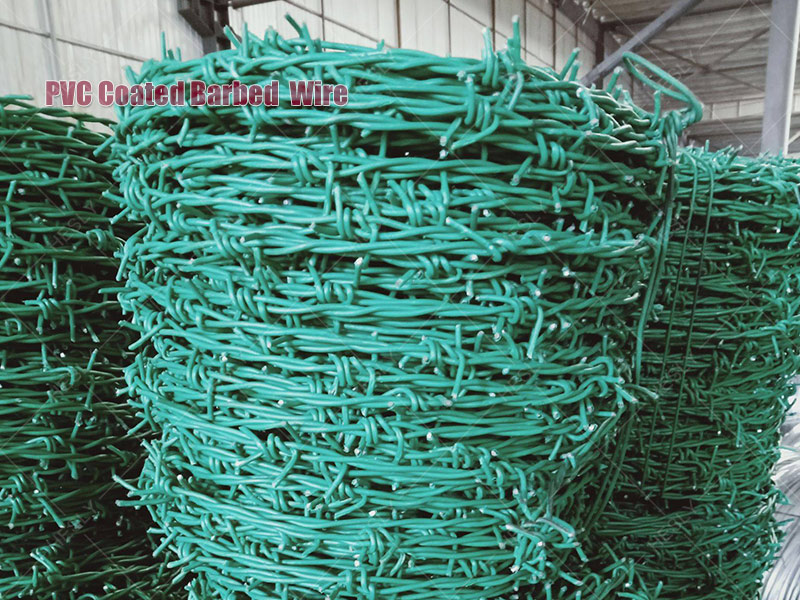

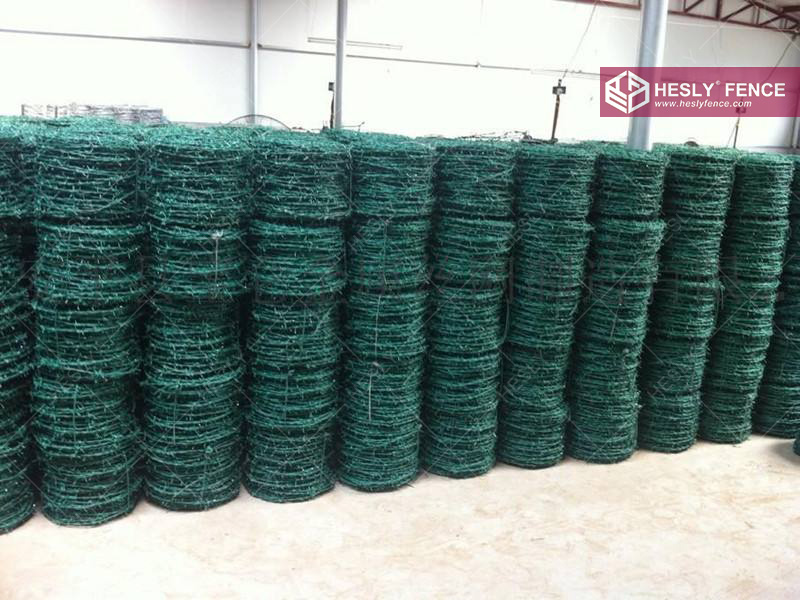

5. PVC Coated Barbed Wire

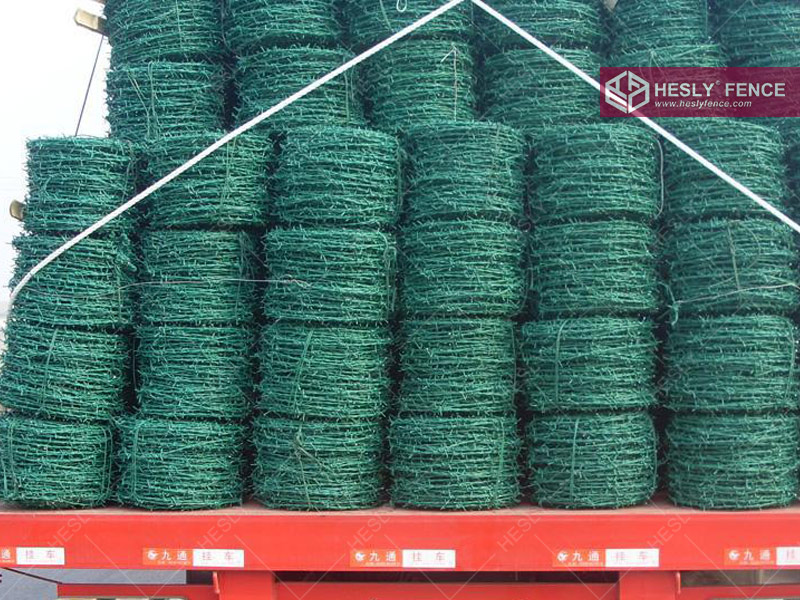

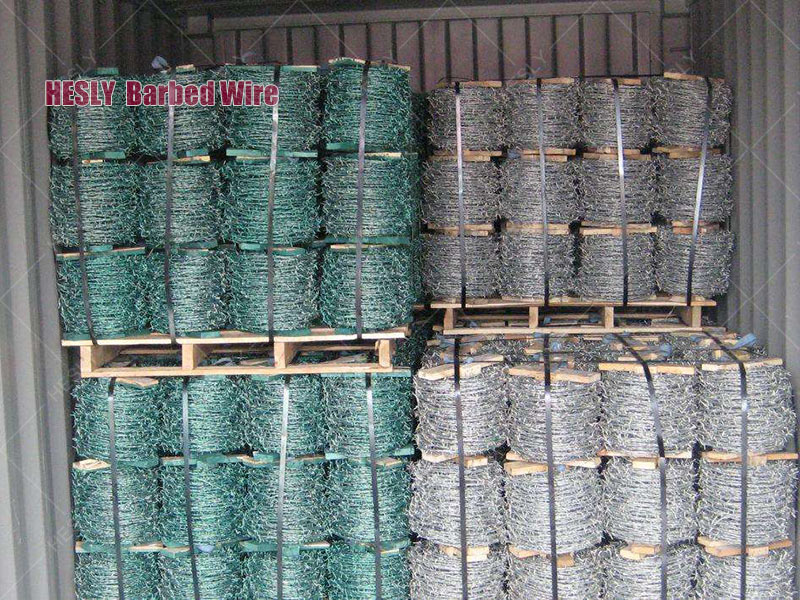

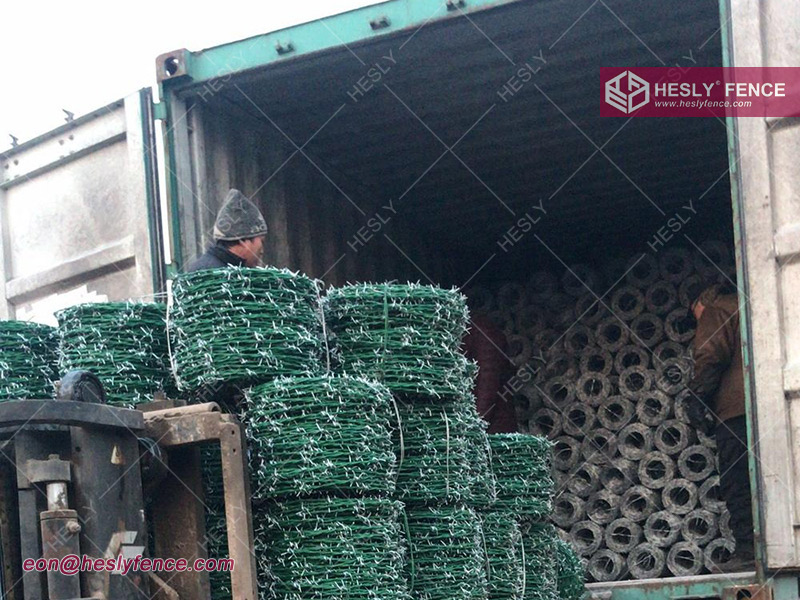

6. Barbed Wire Loading Container
