Different Barbed Styles of Barbed Wire

HOW TO ORDER

OPEN HOURS

An effective and economical security fencing product.

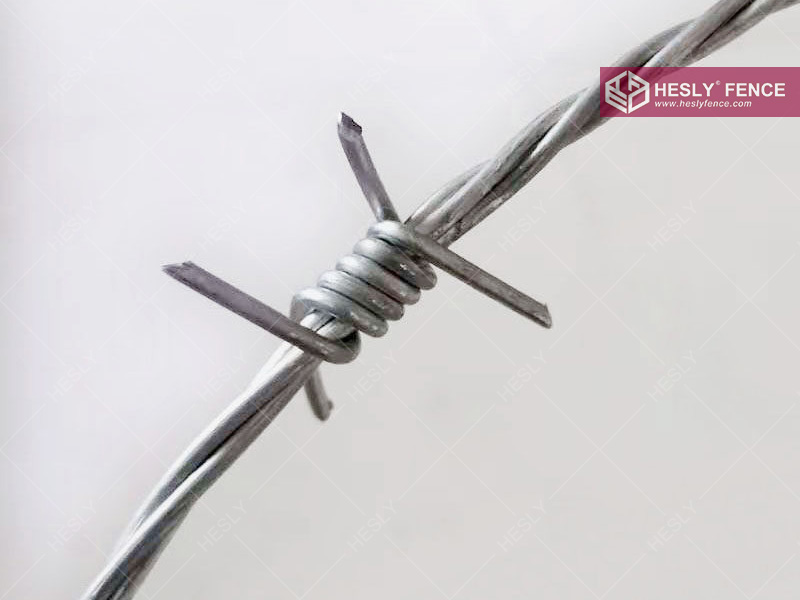

Galvanized Barbed wire is the material of choice for superior cattle fence construction. Formed from twisted wire strands interspersed with 2-point or 4-point barbs. Standard barb spacing is 5 inches, but 3 inch spacing is available and recommended for high animal traffic or exclusion applications.

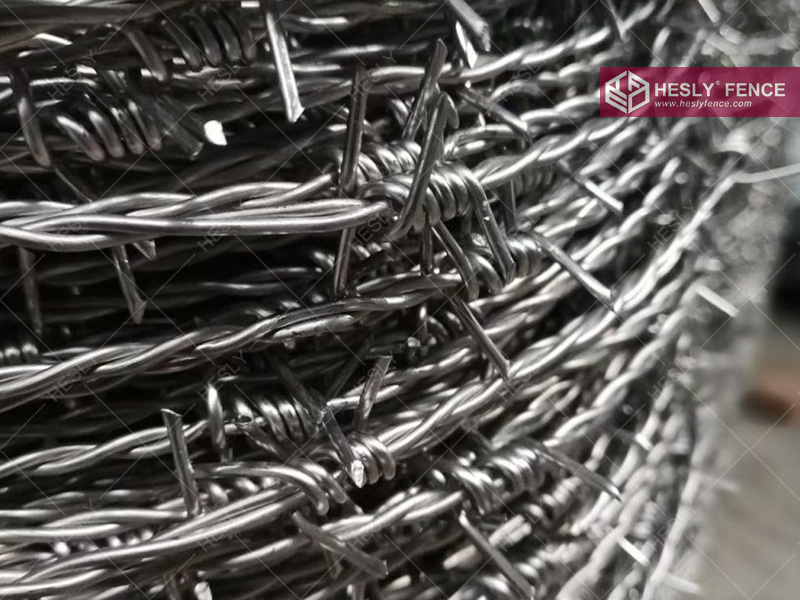

HeslyFence barbed wire fence uses a reverse twist design where the wires switch directions at each barb insertion, producing a stronger, sag-resistant fence with greater memory and less maintenance.

Compared with the razor wire fence, barbed wire fence uses fewer raw materials and has no complicated accessories, it is very convenient to install and durable, so it is a very economical and practical fence choice.

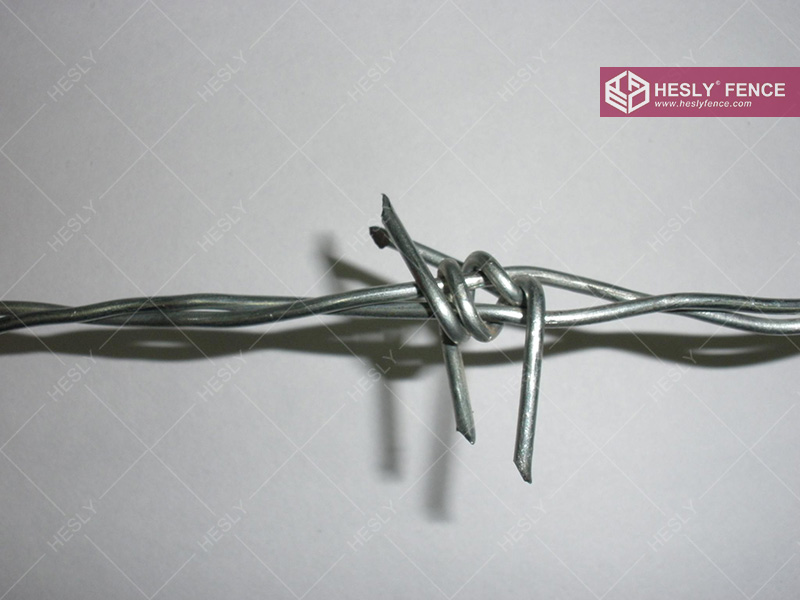

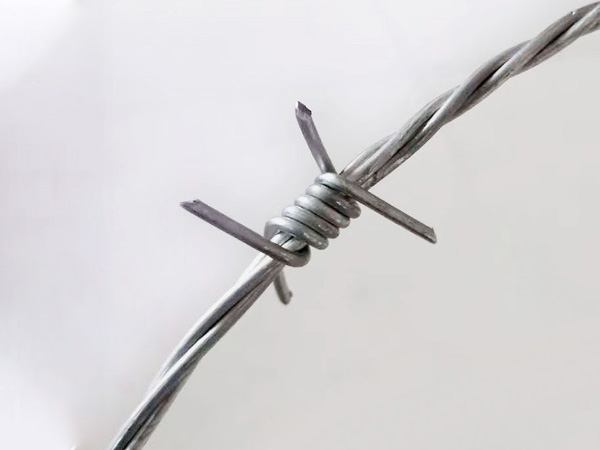

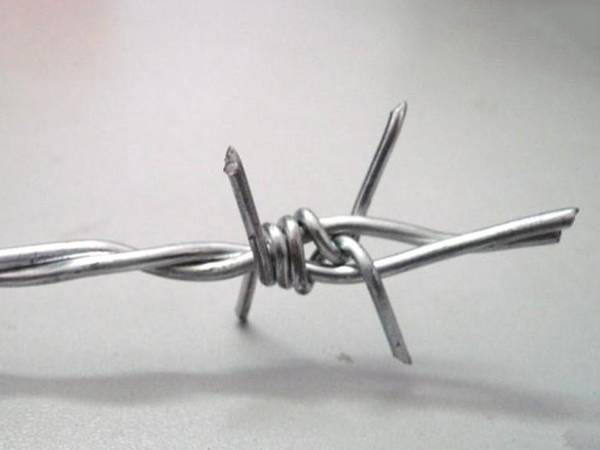

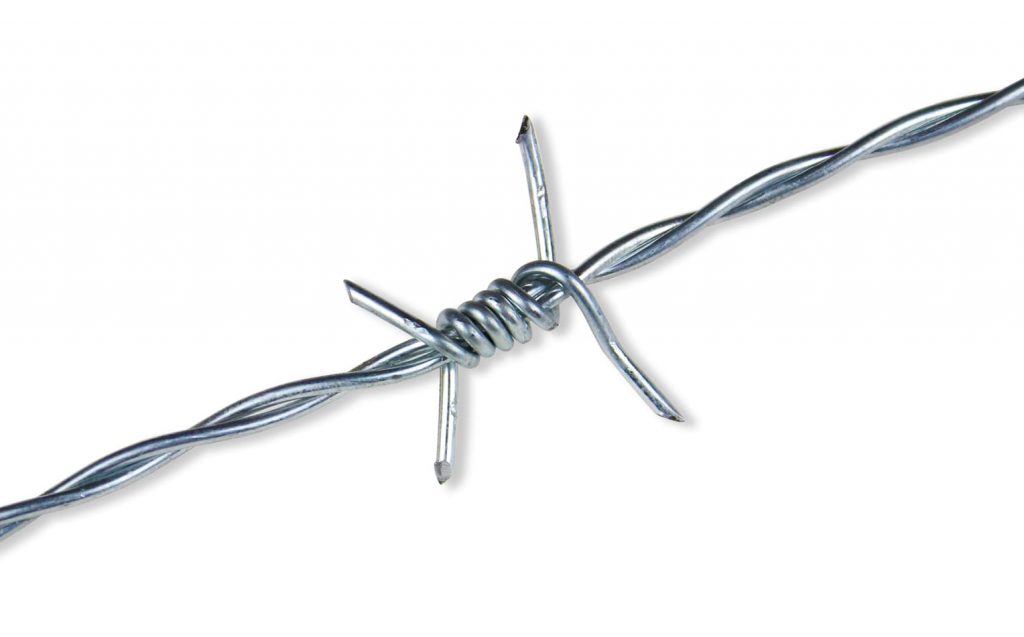

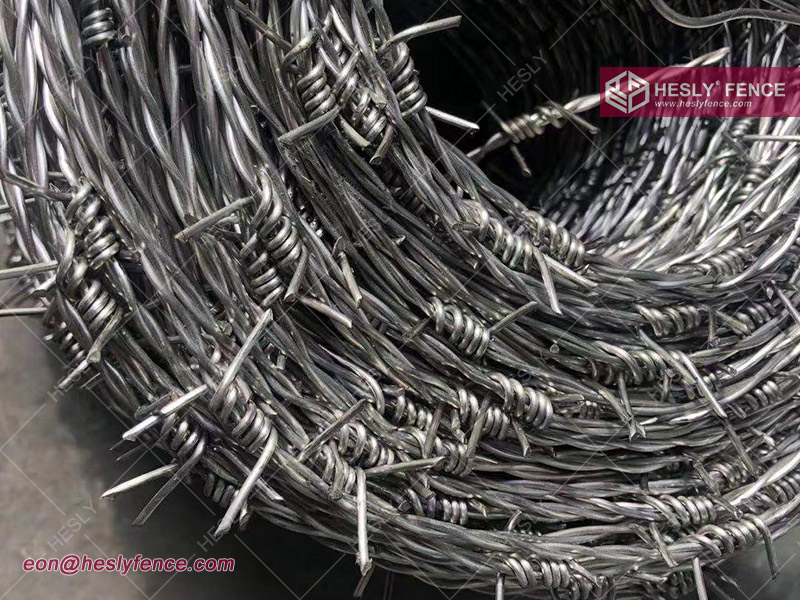

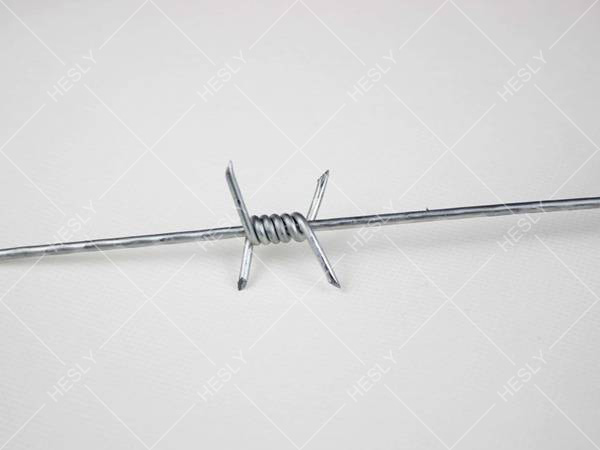

Normal Twist Double Strand	Reverse Twist Double Strand	Single Strand

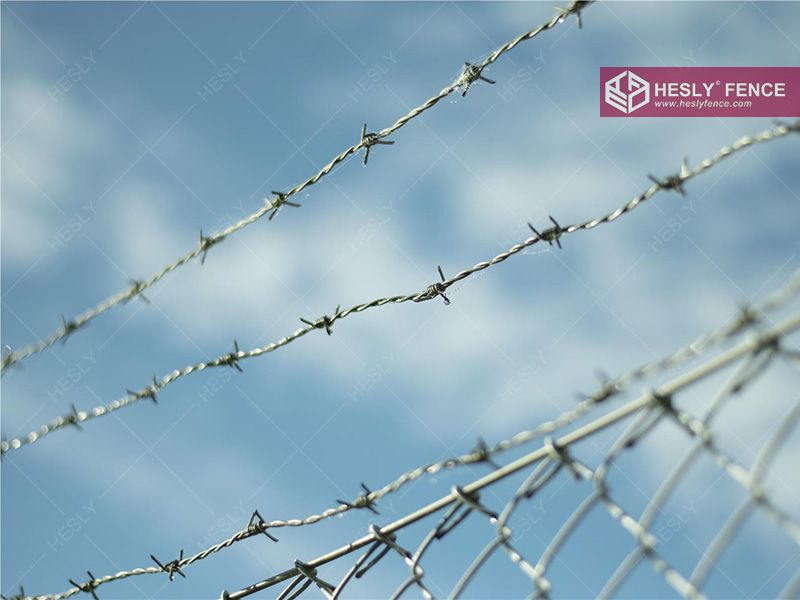

Barbed wire fence with the simple construction, beautiful appearance, corrosion resistance and oxidation resistance, economic and practical, with good deterrent effect, beautiful, convenient construction, economic and practical and other excellent characteristics. It has been widely used in grassland border, railway, highway, industry, agriculture, animal husbandry, forest protection, military field, border guard post, prison isolation, and protection sites.

General Specification Information

Material: Materials: Q195 and Q235 or high tensile steel wire
Surface Treatment: Hot dipped Galvanized, Electro galvanized and PVC coated
Tensile Strength:
Soft: 380–550 N/mm2
High tensile: 800–1200 N/mm2
Package: Pallet package and bulk package

Galvanized barbed wire

Wire Diameter (BWG)	Length (m/kg)
Wire Diameter (BWG)	Barb Distance 3"	Barb Distance 4"	Barb Distance 5"	Barb Distance 6"
12 × 12	6.06	6.75	7.27	7.63
12 × 14	7.33	7.90	8.30	8.57
12.5 × 12.5	6.92	7.71	8.30	8.72
12.5 × 14	8.10	8.81	9.22	9.562
13 × 13	7.98	8.89	9.57	10.05
13 × 14	8.84	9.68	10.29	10.71
13.5 × 14	9.60	10.61	11.47	11.85
14 × 14	10.45	11.65	12.54	13.17
14.5 × 14.5	11.98	13.36	14.37	15.10
15 × 15	13.89	15.49	16.66	17.50
15.5 × 15.5	15.34	17.11	18.40	19.33


Galvanised Barbed Wire	Barbed Wire Fencing	Barbed Wire HeslyFence

China Barbed Wire Factory	Hesly Barbed Wire Supplier	Barbed Wire Exporter


Barbed Wire Exporter	Galvanized Barbed Wire Factory	China Barbed Wire Supplier

Galvanised Barbed Wire	China Barbed Wire Supplier	Barbed Wire Fencing

1. Material: Galvanised Steel Wire

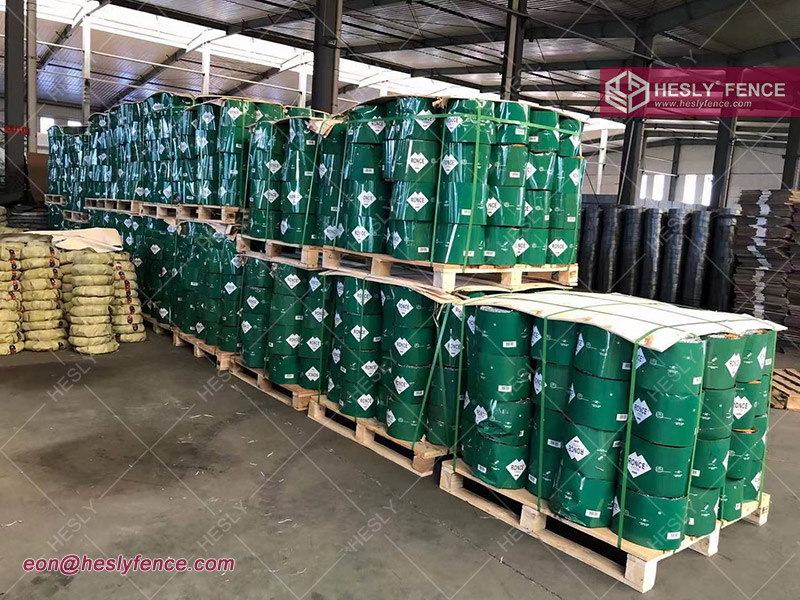

2. Material: PVC coated Wire

3. Barbed Wire Machine

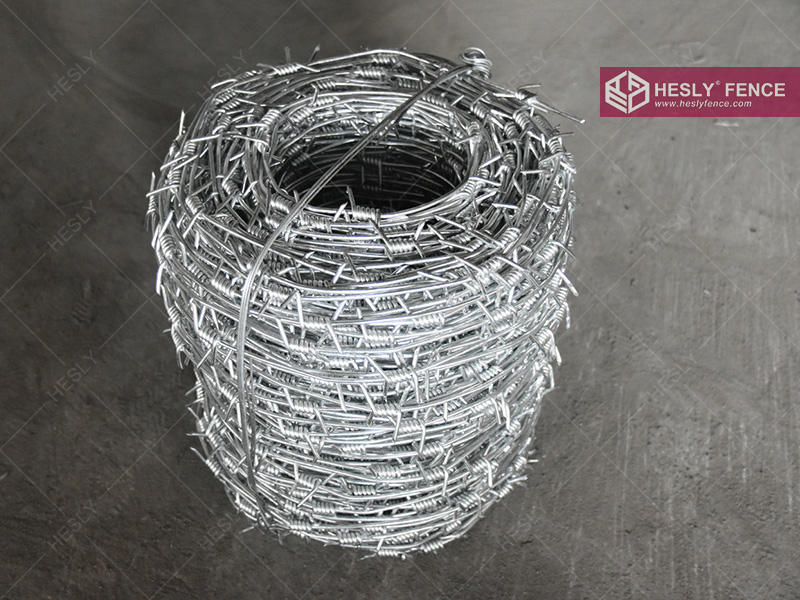

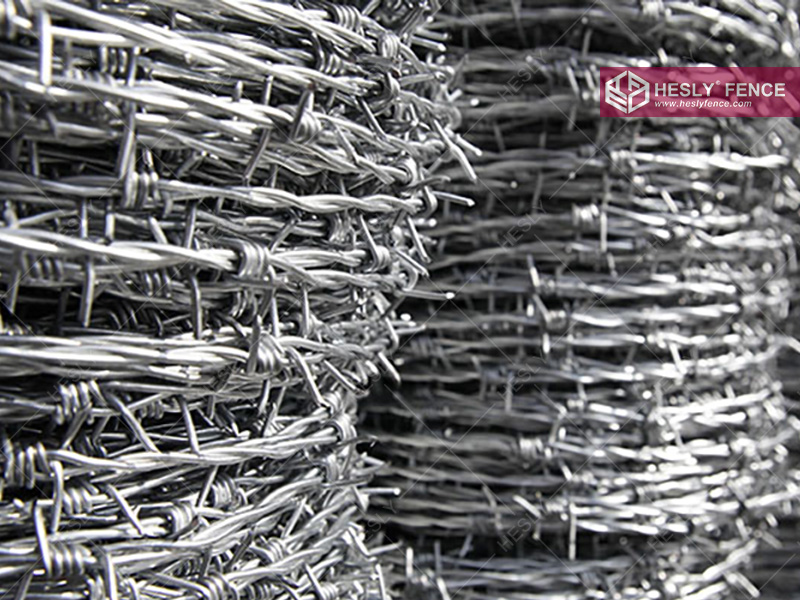

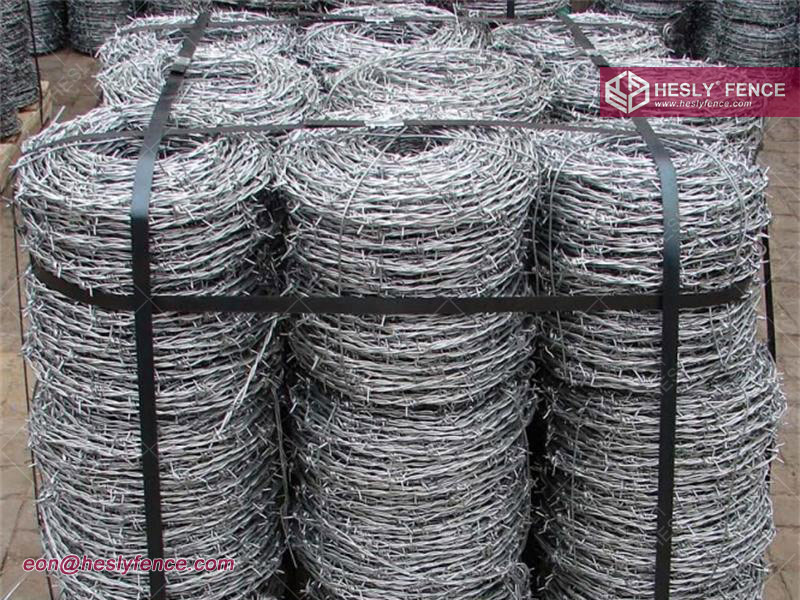

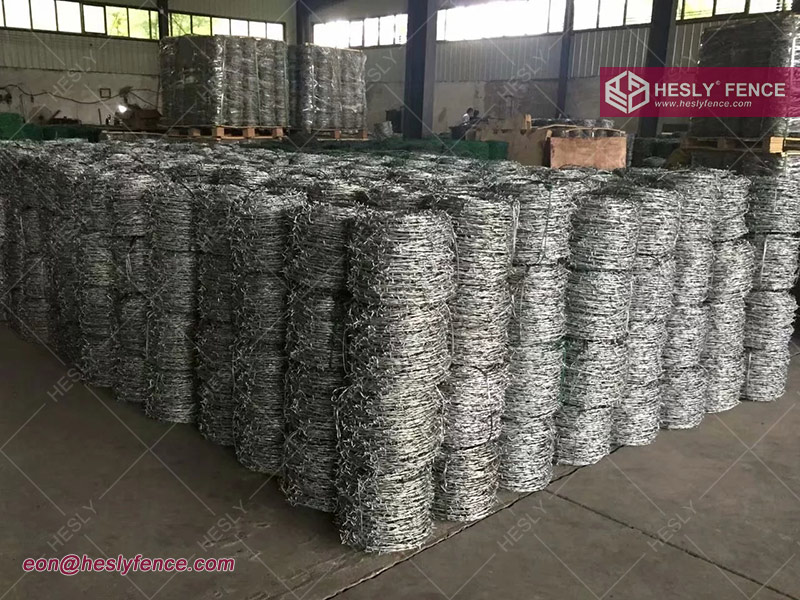

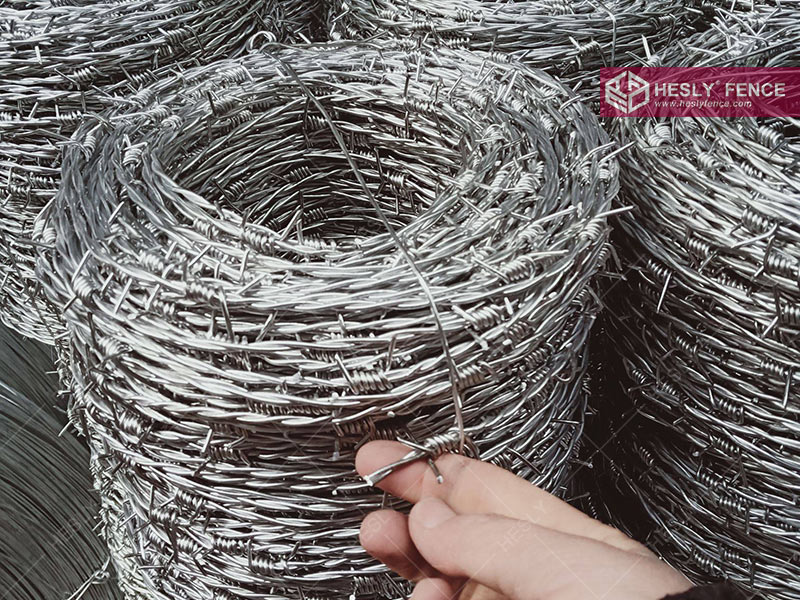

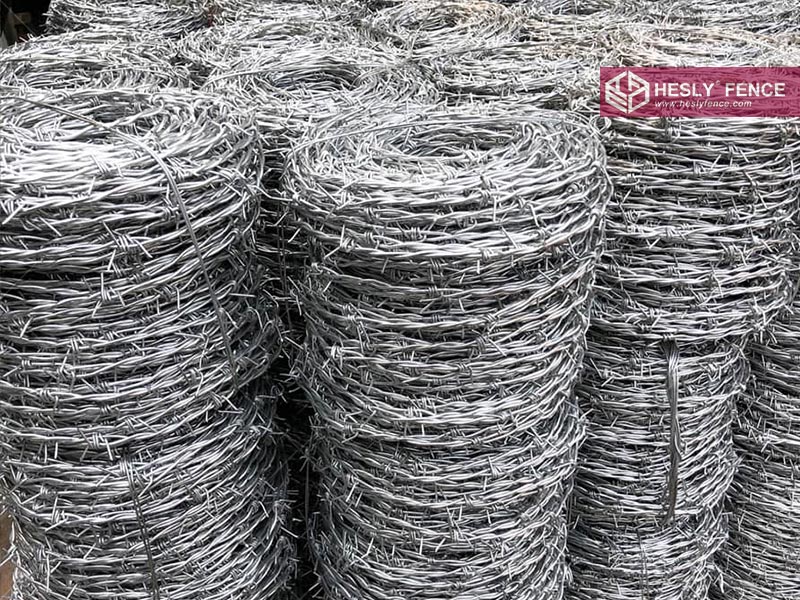

4. Galvanised Barbed Wire

5. PVC Coated Barbed Wire

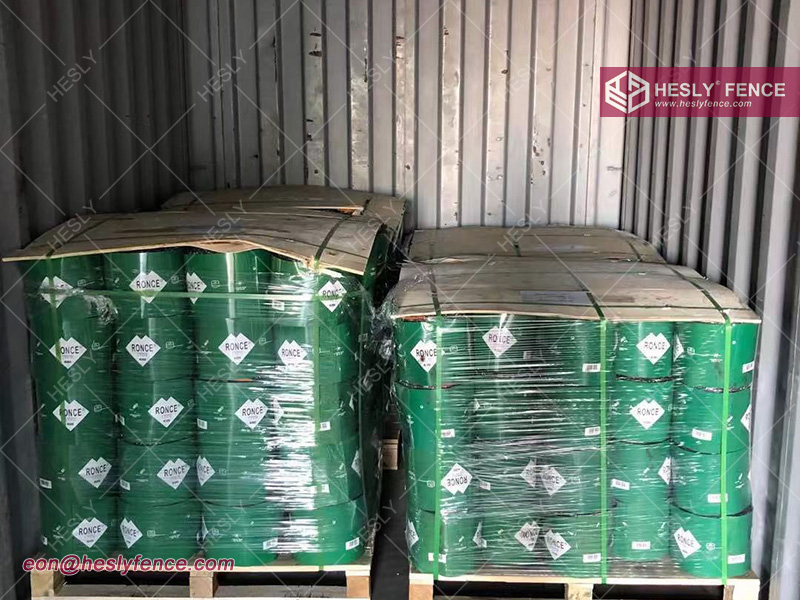

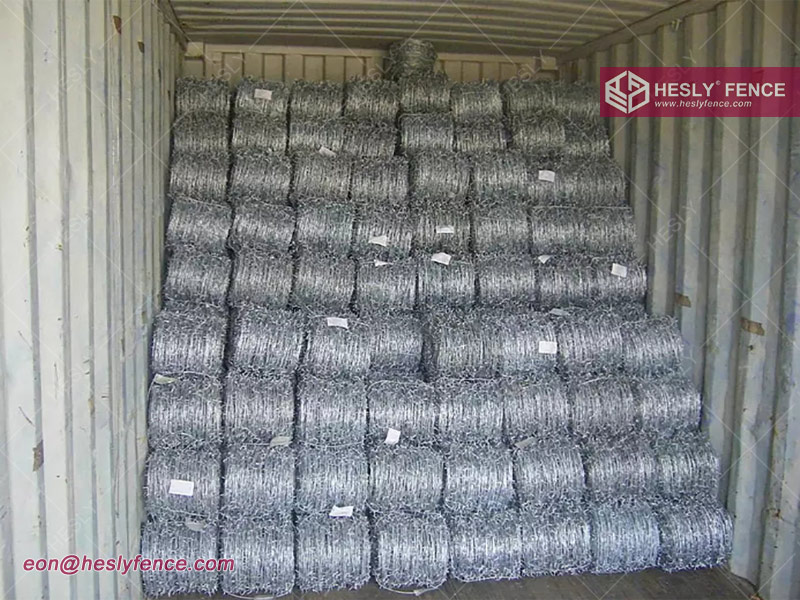

6. Barbed Wire Loading Container
