"W" Pale Steel Palisade Fence

Palisade Fencing “Your High Security Perimeter Solution” !

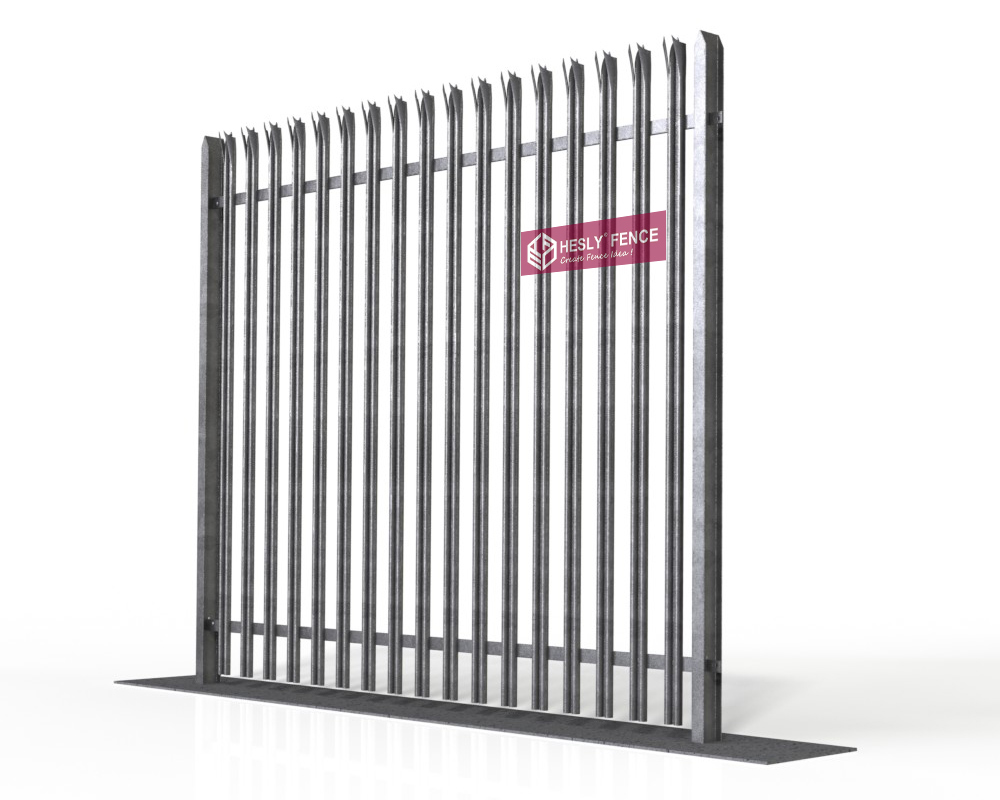

Steel Palisade Fencing comprises robust vertical steel pales secured to horizontal rails to form panels that mount on steel IPE support posts ("H" steel). It is a popular type of perimeter fencing when there is a need for higher security and vandal resistance. Difficult to cut and climb because of the high-strength materials and lack of footholds. As a matter of first choice, Hesly high security palisade fence delivers the highest maximum level of protection from intruders and vandals and gives a physical and visible deterrent against vandalism and intruders.

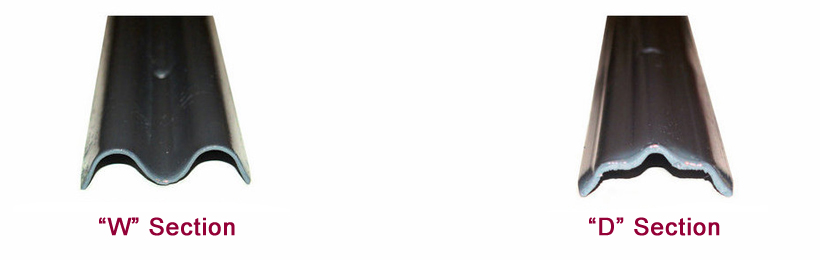

"W" Section Pales OR "D" Section Pales

The most popular form of palisade pale currently on the market is the W pale. It is called a W pale because the shape of the pale looks like a W compared to traditional rounded pale, which is referred to as a D pale. Due to its re-enforcing shape the W pale is more economical as you can get the same strength, whilst using lower gauge steel. This makes the palisade fence cheaper than one that uses the old-style D pale. Having said this the D pale palisade fence is still extremely popular in a few environments. D pale palisade fencing is commonly specified for government projects, such as around prisons and schools. It is also very important if you are repairing a palisade fence, or extending one, that you continue to use the same palisade pales, so that it does not look out of place. As most palisade fenced traditionally used D pales they continue to be popular for these types of fencing projects.

Different Style of Palisade Fence Heads

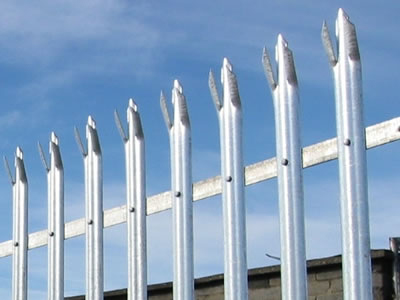

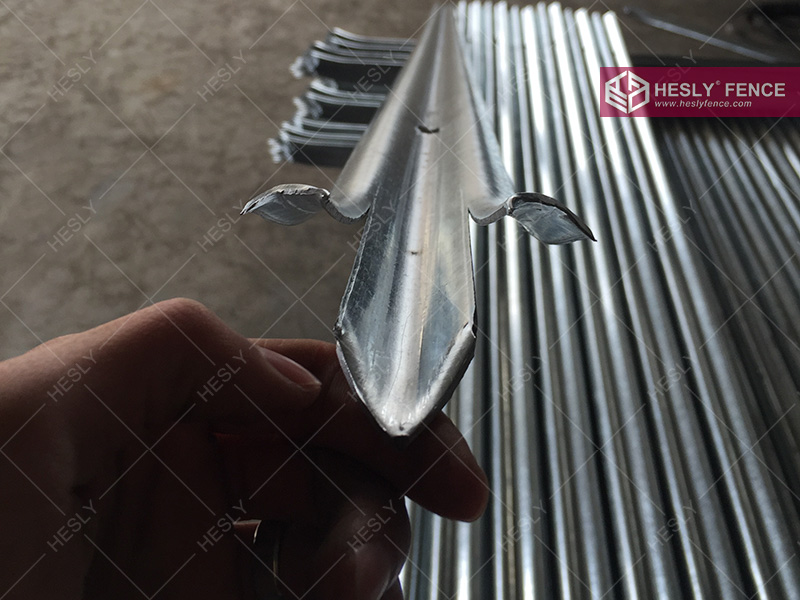

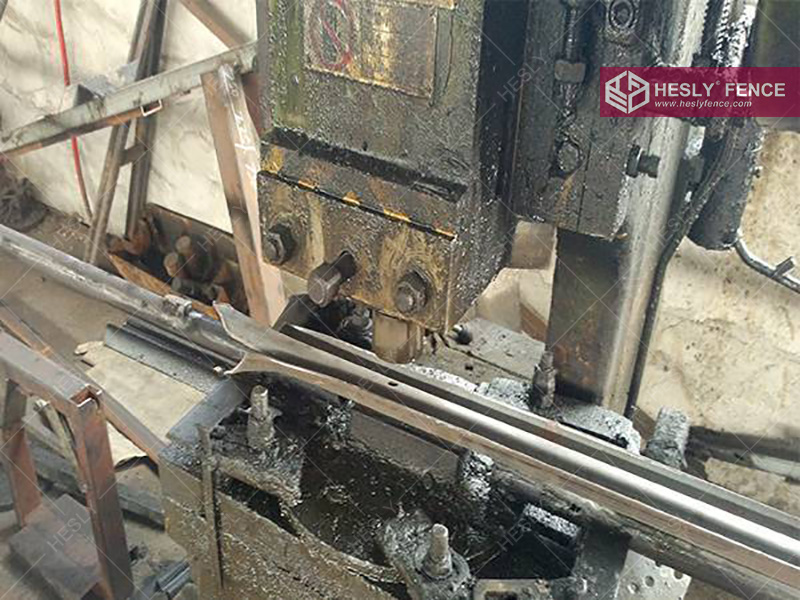

we most commonly supply palisade fencing with a triple point splayed head. This is because palisade fencing is most commonly used as a perimeter security fence. Therefore one of its main requirements is to deter and stop intruders. The triple point splayed pale head is the most effective at providing a high security fence line due to its fierce looking nature. The splayed sharp steel head is incredibly difficult & dangerous to climb over. We also offer rounded and round & notched pale heads upon request. These palisade pale heads are still sharp steel heads, that present a formidable fencing line, however they cover less of the fence line as they are not splayed.

Straight Top & Curved Top

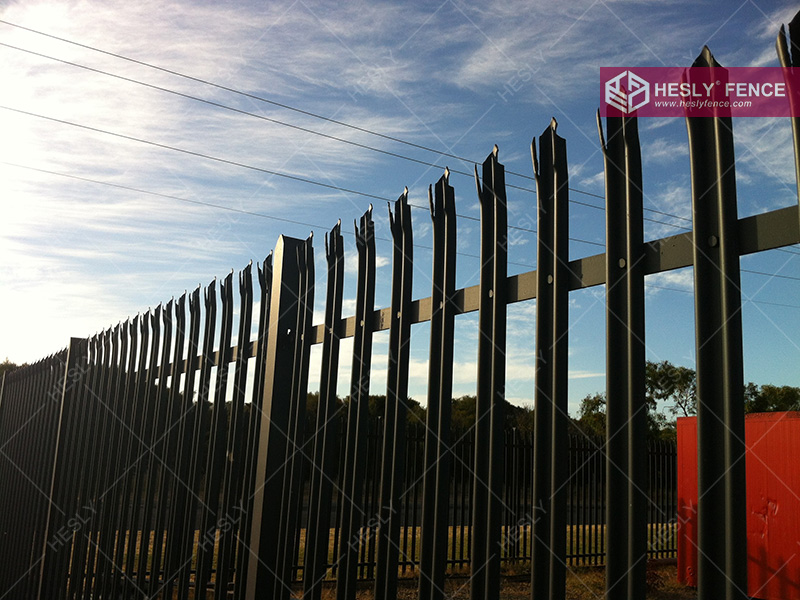

Palisade security fencing is available in straight or curved top for extra security protection. The curved finish of HeslyFence Palisade makes intrusion extremely difficult. The lack of any helpful projections or closely spaced horizontal rails, as easy climbing aids, also deter intruders. The open ‘W profile’ of Palisade pales resists bending in any direction. Its design deters cutting methods, dismantling or being forcefully deformed.

Posts

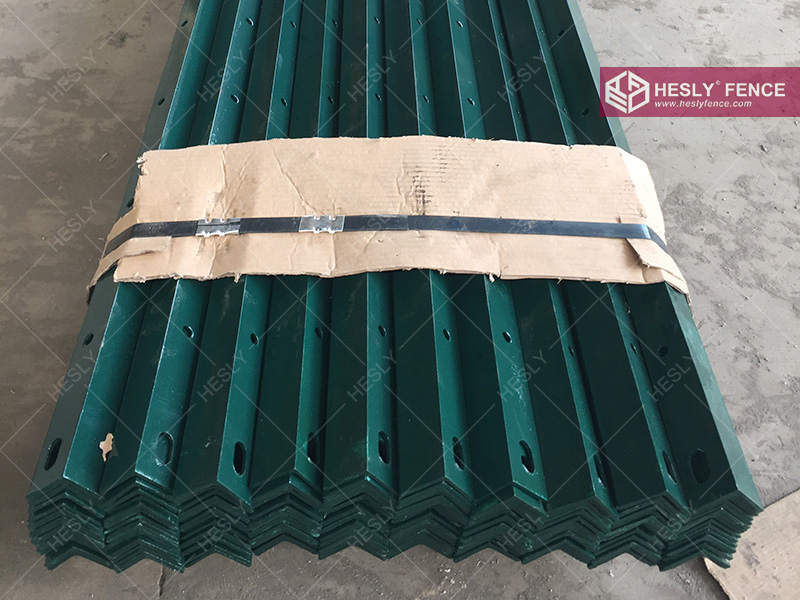

Post are made from super strong H profile steel and rails are made from heavy duty angle punched with holes to attach the spears.

Coating Technique & Colors

All of our Palisade Fencing comes in galvanised finish as standard, which helps to protect it from rust, however we also offer a powder coated option to ensure your new fencing blends seamlessly into your design. Coated palisade fencing allows you to personalise the colour of your fence to suit the surrounding area. Ideal if you need and unobtrusive but highly secure fence.

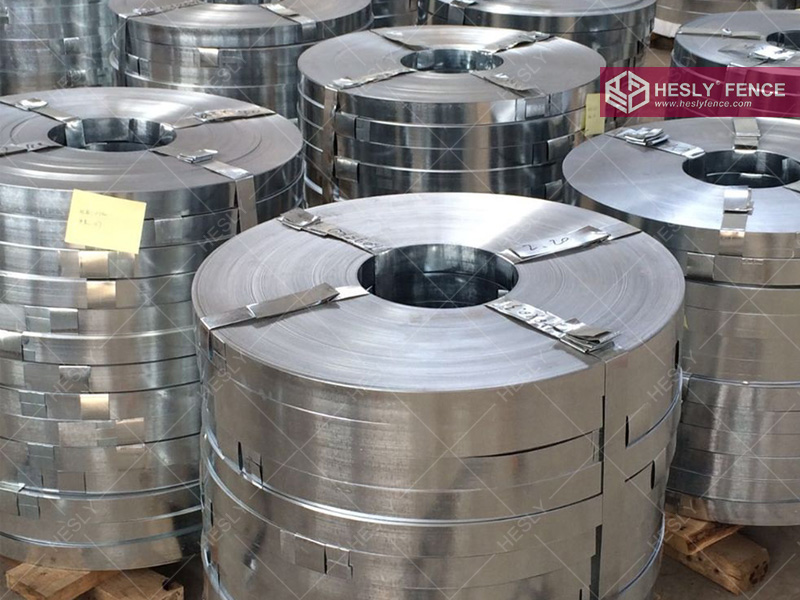

	PRE-GALVANISED Cost effective, strong and durable All hesly palisade pales are pre galvanized.
	POLYESTER POWDER UV resistant, durable, beats rust, appealing aesthetic Polyester powder coating available as a final finish to all pre-galvanised wire mesh panels and components
	PVC COATED Corrosion protection, resistance to high UV, intense heat, salt and sand abrasion, impact damage, graffiti damage, Cosmetic appearance
	HOT DIP GALVANISED For coastal and highly corrosive environments The entire finished product emerges from the molten tank fully coated with a layer of zinc The thickness of the zinc coating (average coating fabrication) — 80μm

Colors

The popular polyester powder color listed below. More and other colors out of RAL Collection are available on request.

Dark Green	Grey	Tomato Red	Traffic Orange	Traffic Yellow	Gentian Blue
Steel Blue	Traffic Red	Mint Green	Black	Signal Blue	Pastel Turquoise
Luminous Yellow	Pure White	Other color is available
