868/656 Double Wire Mesh Fence | Twin-Wire Fencing

Perfect Security Fence with High Visibility !

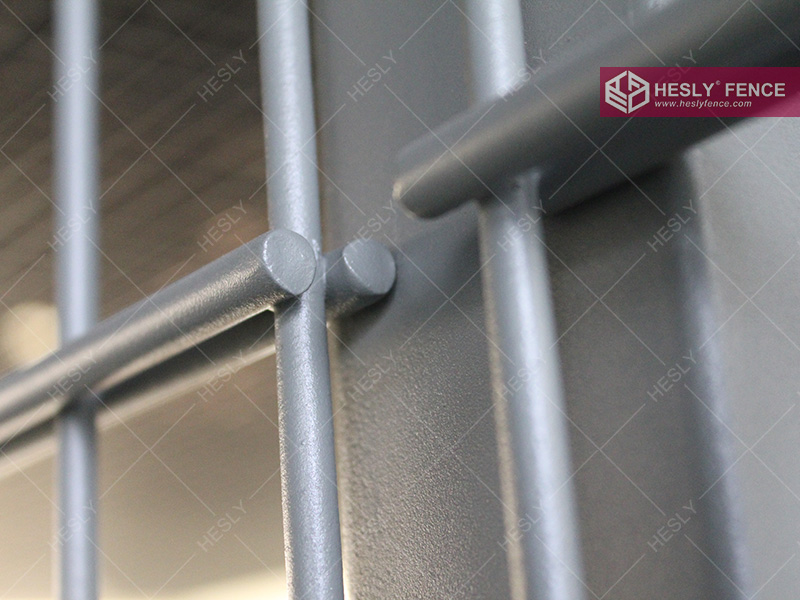

Twin Wire Mesh Fencing, also known as double wire fence, is a kind of specially designed welded wire fence with double horizontal wires welded to single vertical wire. Its unique structure makes it stronger and more durable than single wire fence. Our double wire fence is made of high quality carbon steel wires with a diameter of 6/5/6 mm or 8/6/8 mm. Typically, our double wire fence cannot come with folds because of its vertical wire is too strong for bending. Besides, galvanized or powder coating treatment gives the double wire fence excellent corrosion and rust resistance performance and a long service life. Double wire fence is very popular in European markets and is widely used in various residential, commercial and industrial applications, including but not limited to, playgrounds, schools, communities, gardens, parks, etc.

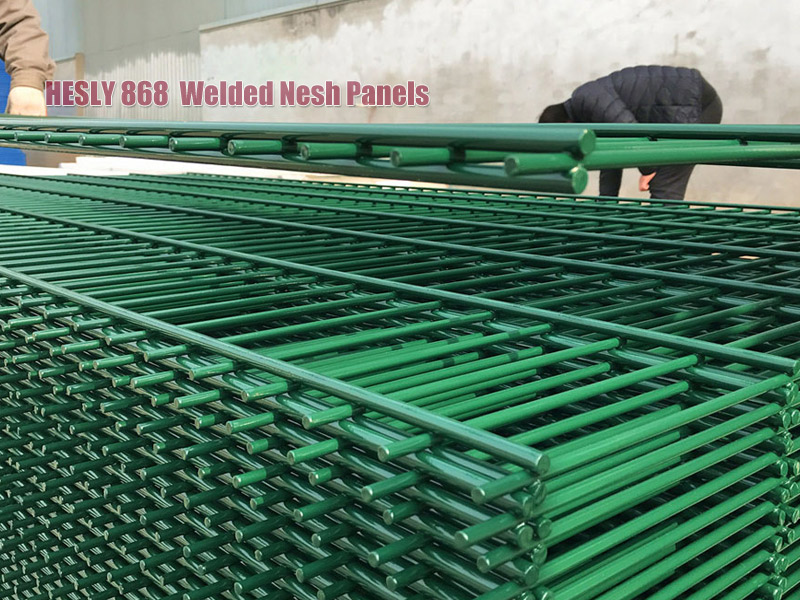

Mesh Panels

• The 2D twin wire panels are made from heavy welded mesh, 2 500 mm width and a range of heights.
• The panels are extremely rigid and secure due to the double horizontal wires.
• The panels have vertical barbs of 30 mm height at one side, which can be installed at the top or at the bottom of the fence.
• The standard mesh: 200×50mm, 200×65mm

Wire diameter:

• Horizontal: 2 x 8mm; 2×6mm
• Vertical: φ6.0mm; φ5.0mm

Benefits of "2D" Twin Wire Fence

• Rigidity - The 2D double wire panels are rigid due to the use of heavy welded mesh in conjunction with double horizontal twin wires.
• High longevity - The coating technology of HeslyFence guarantees extra high longevity. After galvanizing an adhesion coating is applied for a perfect bond with the polyester coating.

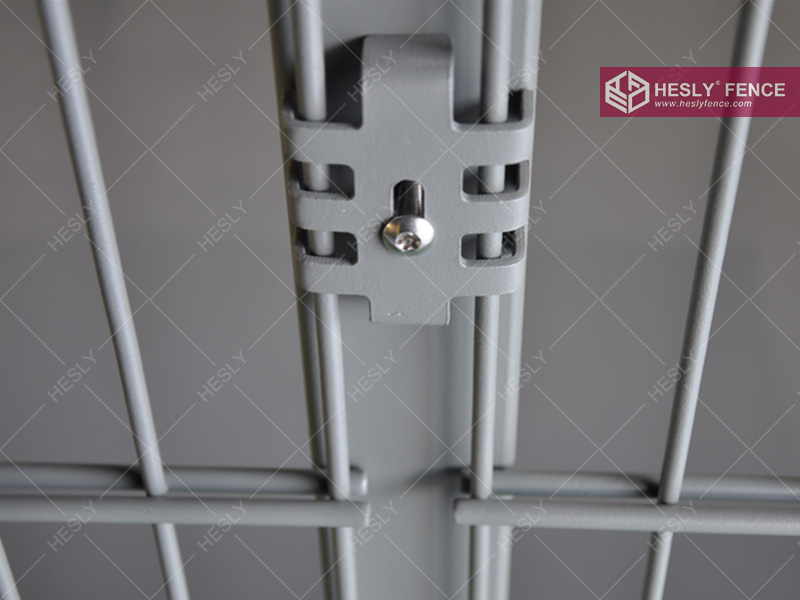

• Complete system - The 2D twin wire fence system includes panels in different mesh apertures and heights, posts with adapted fixation systems and a large range of mesh and gates. All components guarantee a fast and professional installation.

Coating Technique and Colors

	PRE-GALVANISED Cost effective, strong and durable All hesly welded mesh panels are pre galvanized
	POLYESTER POWDER UV resistant, durable, beats rust, appealing aesthetic Polyester powder coating available as a final finish to all pre-galvanised wire mesh panels and components
	PVC COATED Corrosion protection, resistance to high UV, intense heat, salt and sand abrasion, impact damage, graffiti damage. Cosmetic appearance
	HOT DIP GALVANISED For coastal and highly corrosive environments The entire finished product emerges from the molten tank fully coated with a layer of zinc The thickness of the zinc coating (average coating fabrication) — 80μm

Colors

The popular polyester powder color listed below. More and other colors out of RAL Collection are available on request.

Dark Green	Grey	Tomato Red	Traffic Orange	Traffic Yellow	Gentian Blue
Steel Blue	Traffic Red	Mint Green	Black	Signal Blue	Pastel Turquoise
Luminous Yellow	Pure White	Other color is available
