Material

• 4mm wire spot welded at every intersection.

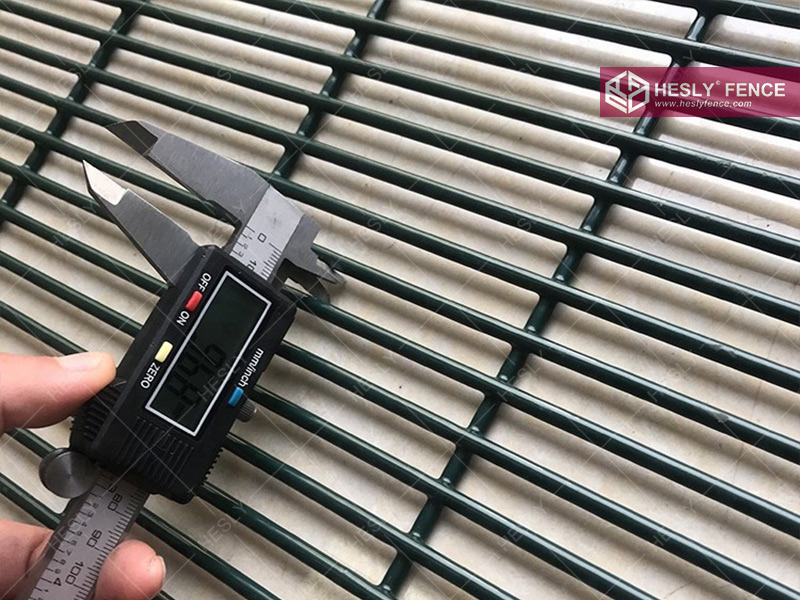

• Horizontal aperture: 76.2mm, Vertical aperture: 12.7mm


Dimensions

• Max Sheet Width: 3000mm, Oriented with Attack Face Narrow 72mm aperture on horizontal plane

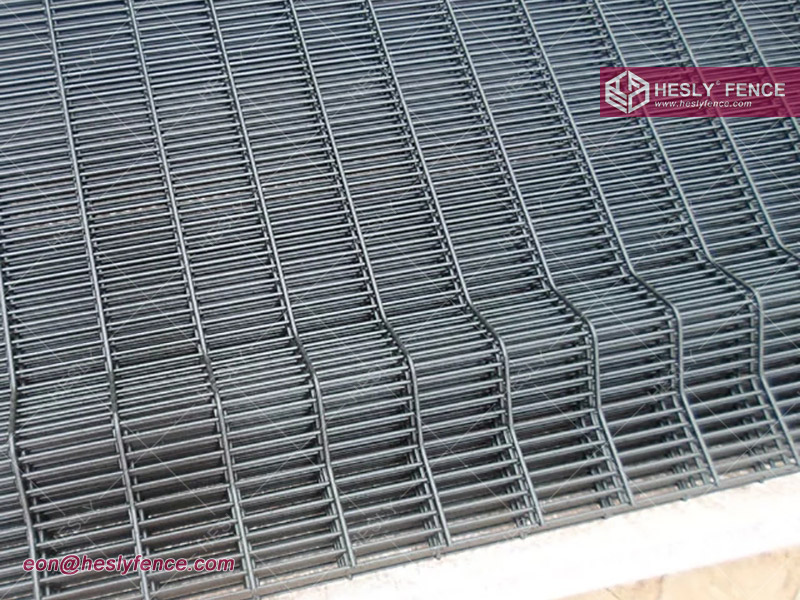

• Height: 2.4, 3.0, 3.6m (other heights by indent)

• Dimension tolerance: +/- 2.5mm

• Squareness: +/- 2% of nominal panel size

• Flatness: +/- 50mm clear of surface laid flat

• Weight: 11.3kg/m2


Finish

• Hot dip galvanised
• Black non galvanised on indent

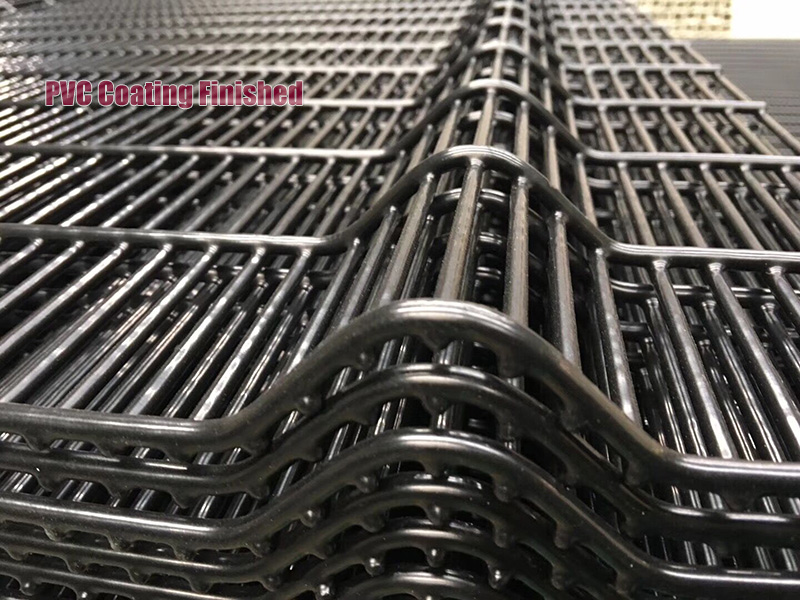

• Powder coated to any colour (not in stock)


Fixings

• Lock Bolt/ Huck Bolt or  with 358 clip
• Alternative M8 Power Drive, one way reversible or Argus non-removable cre


Components

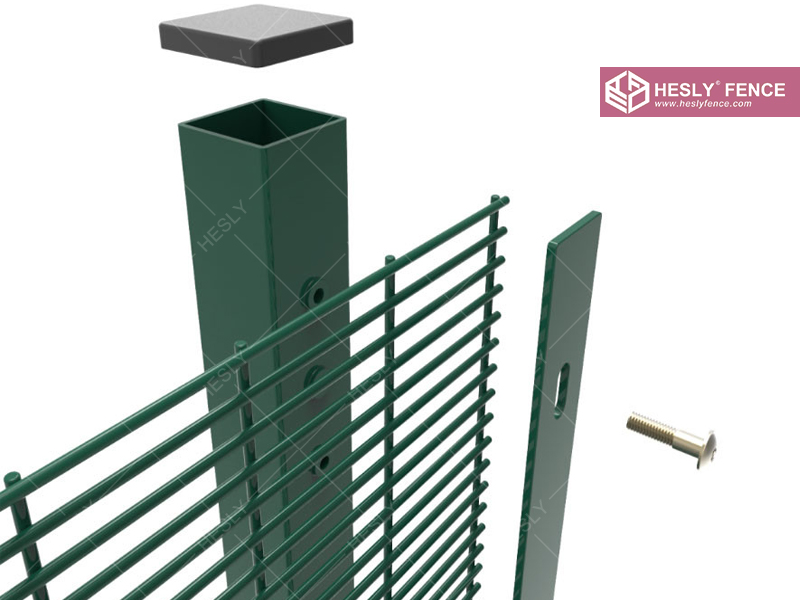

The main components and connection methods of our 358 high security fence are as shown below.

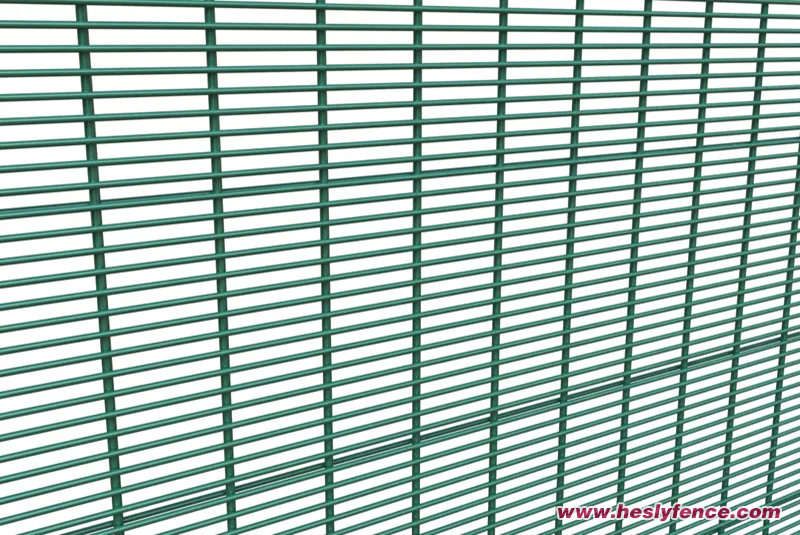

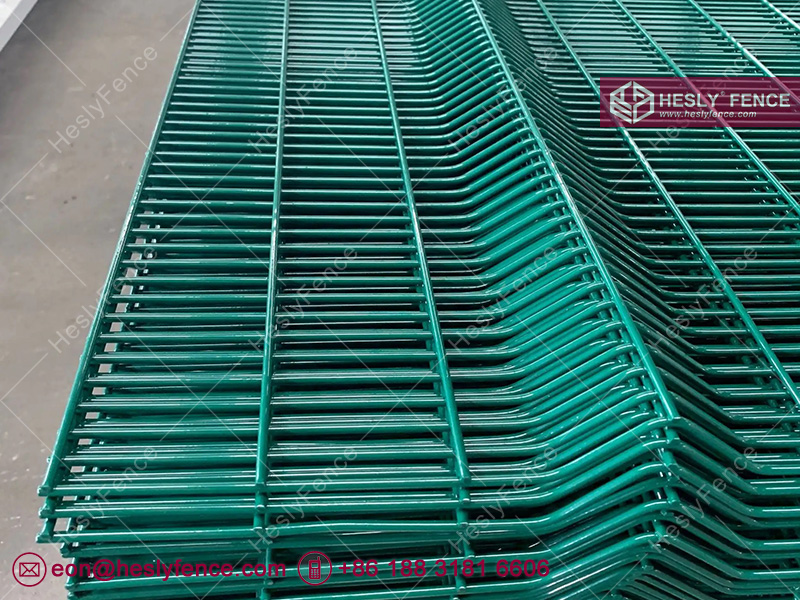

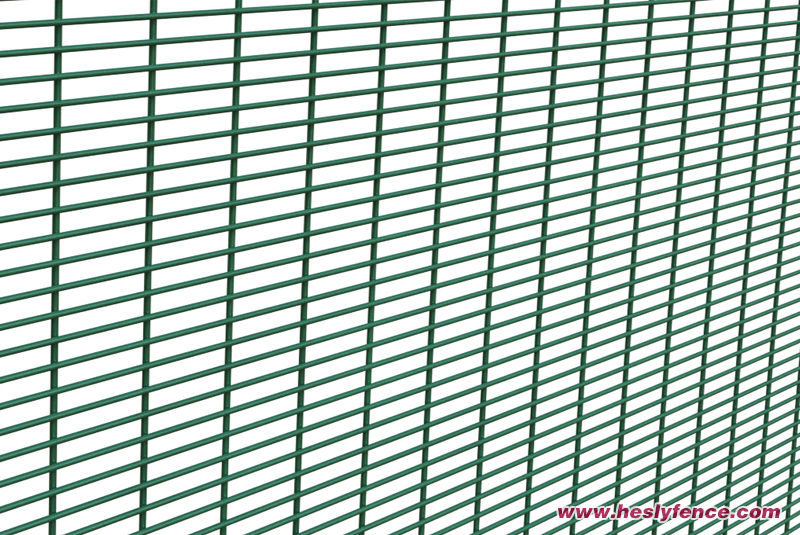

Three Security Grade Anti-climb Mesh Panels

Two Installation Methods With Different Accessories

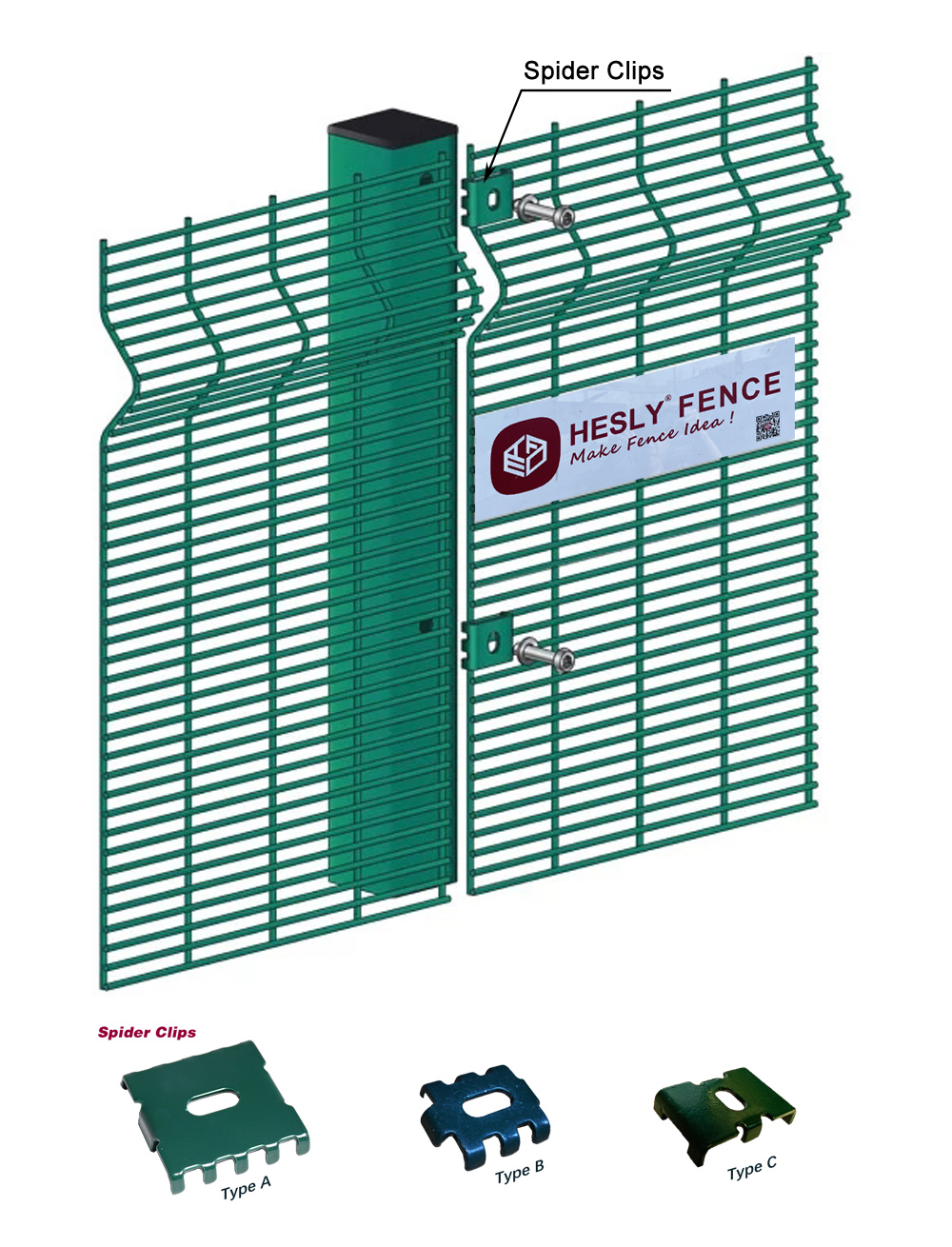

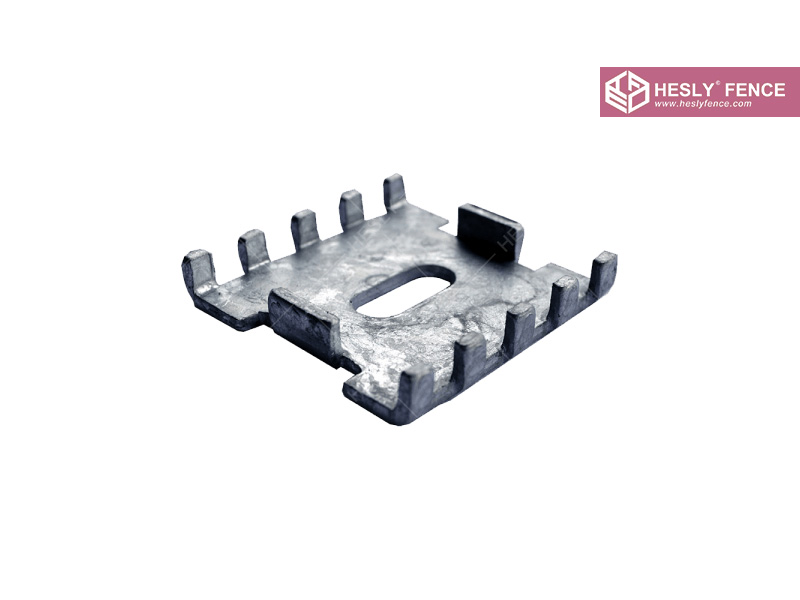

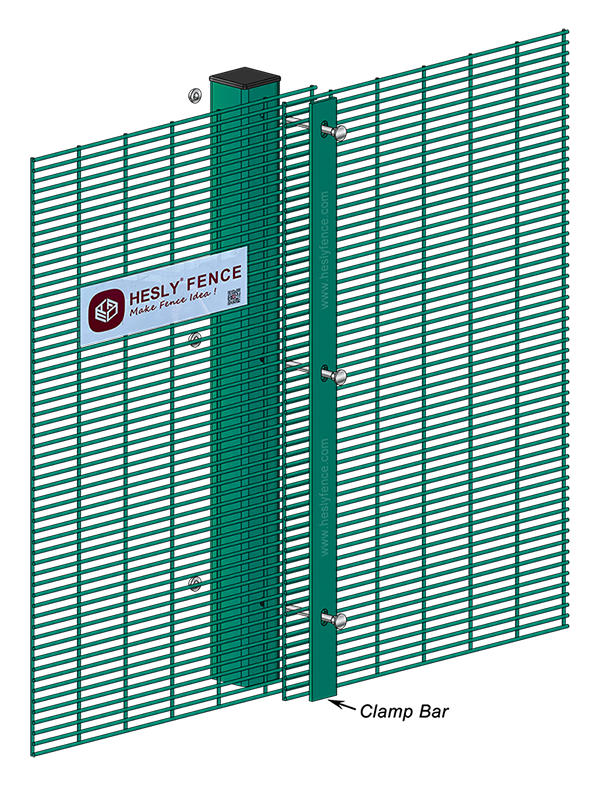

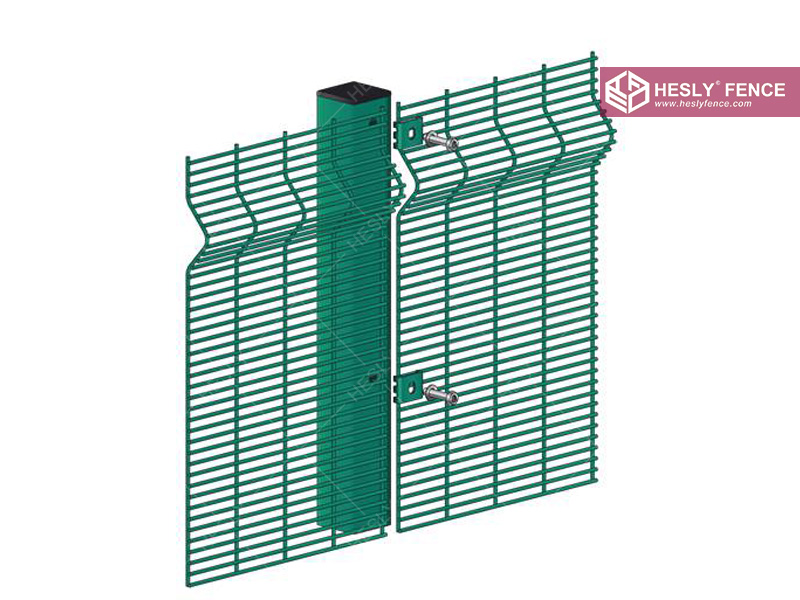

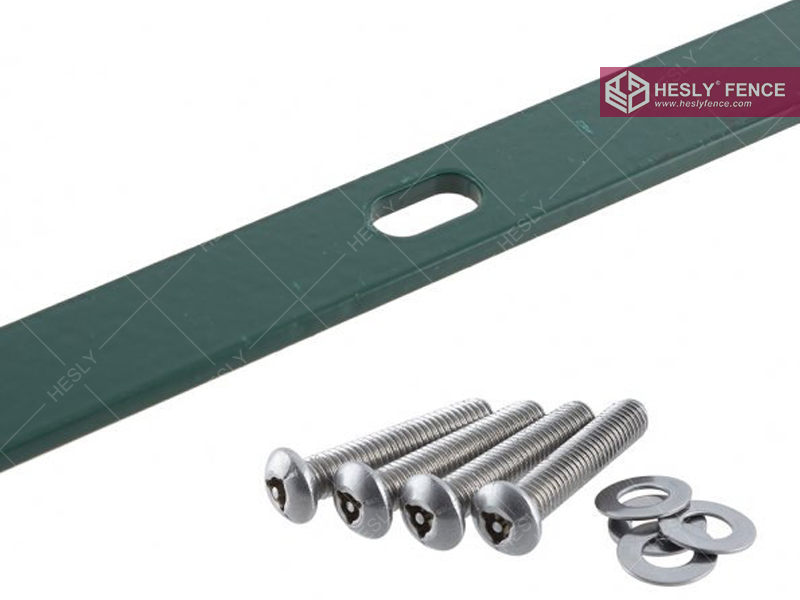

Clamp Bar Fixing	Spider Clips Fixing

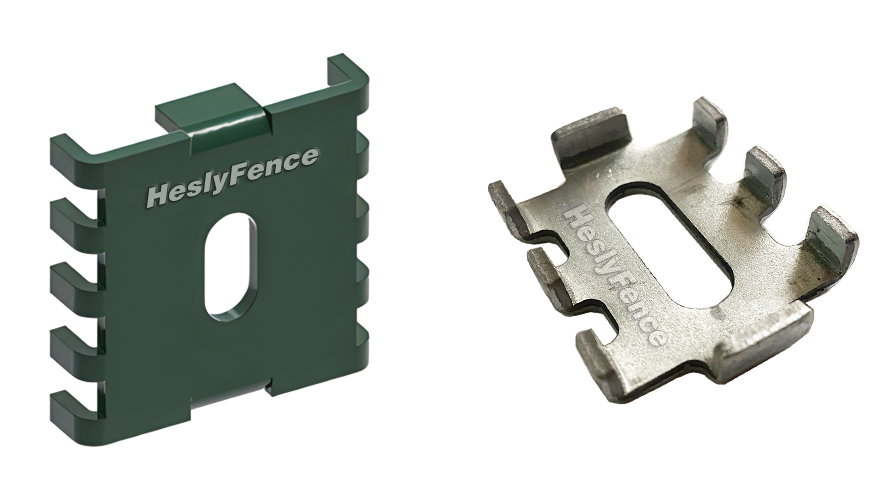

Spider clamps are a type of fixator used to secure clear view panels. They are designed with several “legs” that grip onto the edges of a panel, holding it in place. HESLY Spider clamps come in galvanized, powder-coated or PVC coated options for corrosion resistance and and durability.

How to make 358 Anti-climb Mesh Panels ?

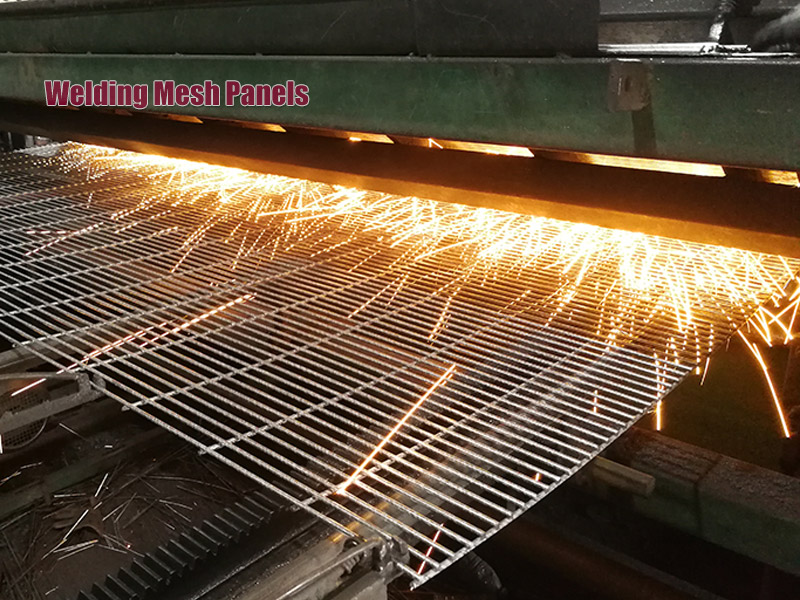

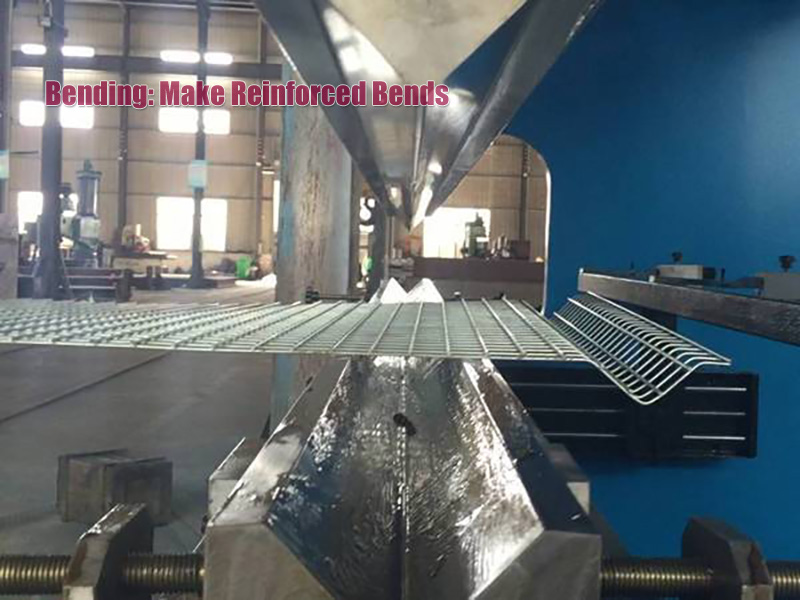

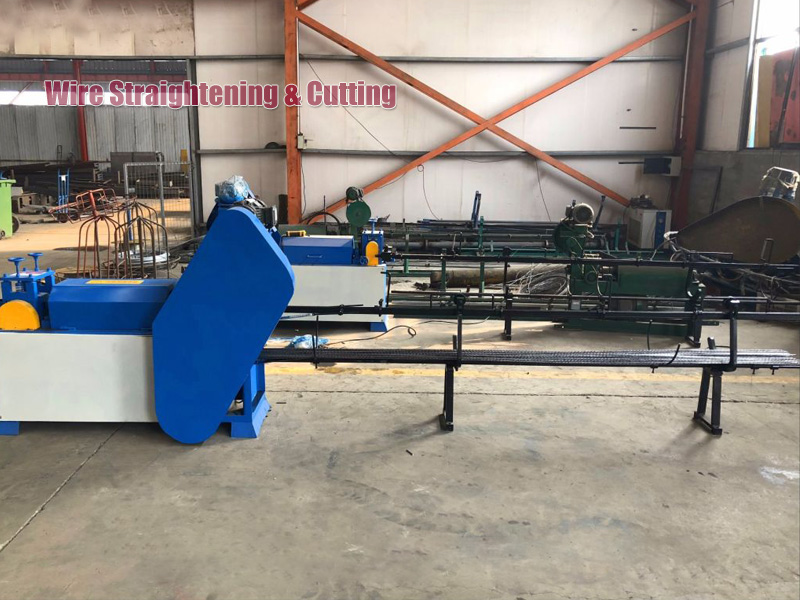

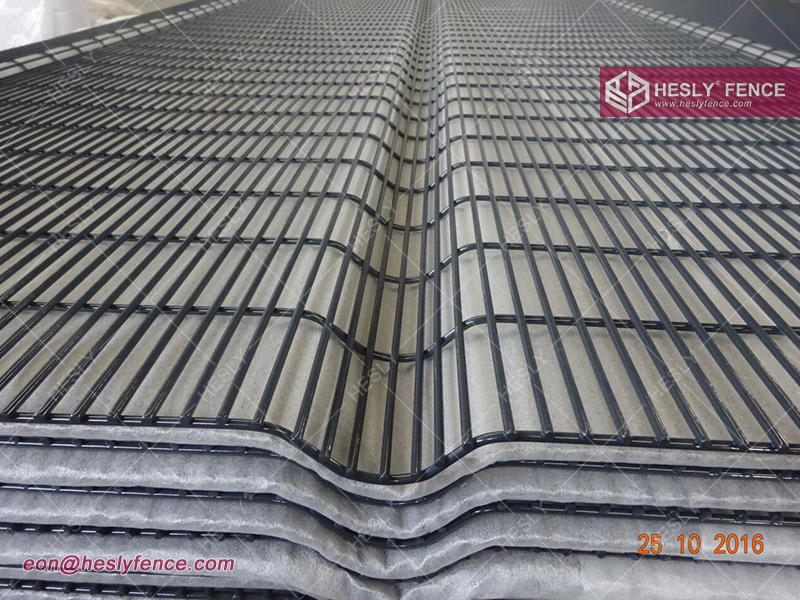

1. Material: Galvanised Steel Wire		2. Wire Straightening & Cutting		3. Welding Wire Mesh Panels		4. Making Reinforced Curvy

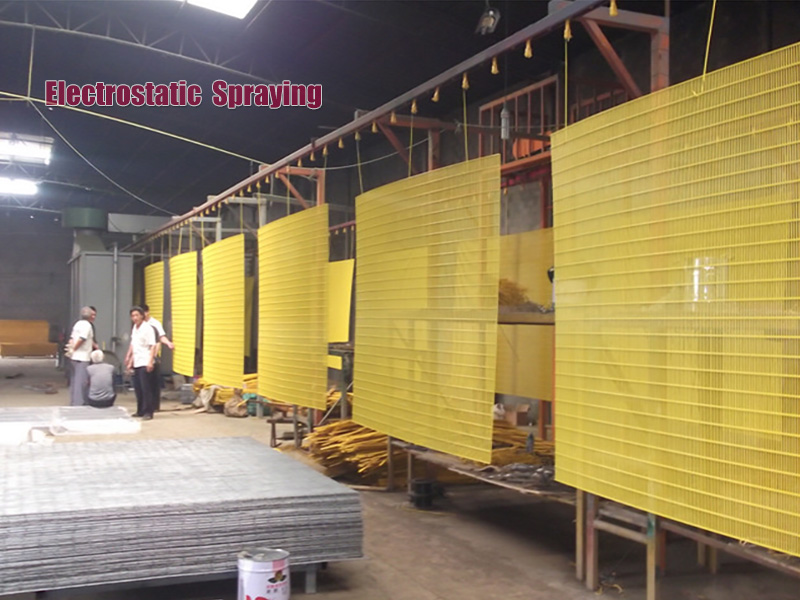

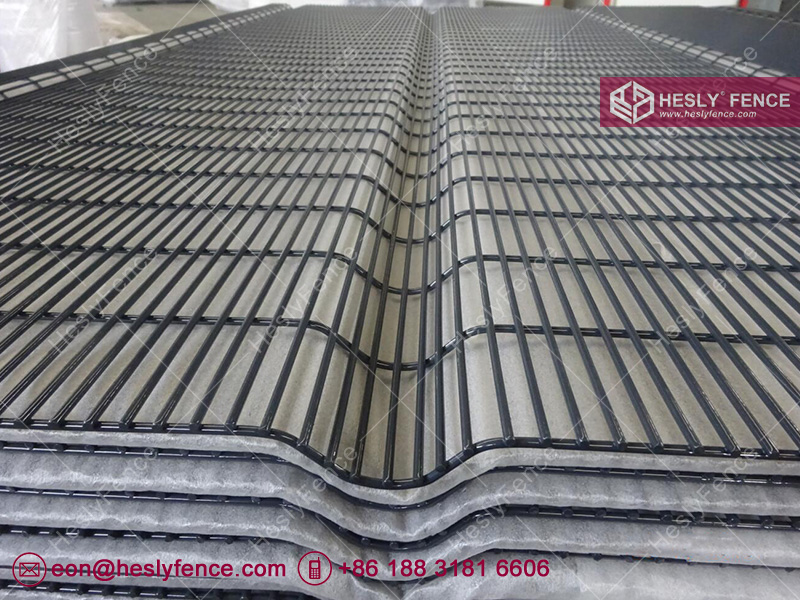

5. Powder Spraying Coated		6. Finished Black Mesh Panels		7. Package		8. Loading Container

HeslyFence - China

Features of 358 Serutity Fence

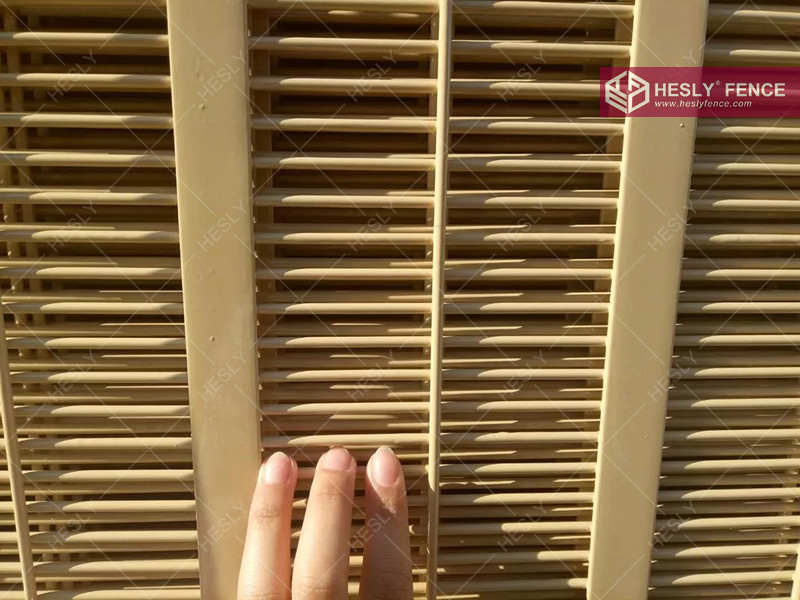

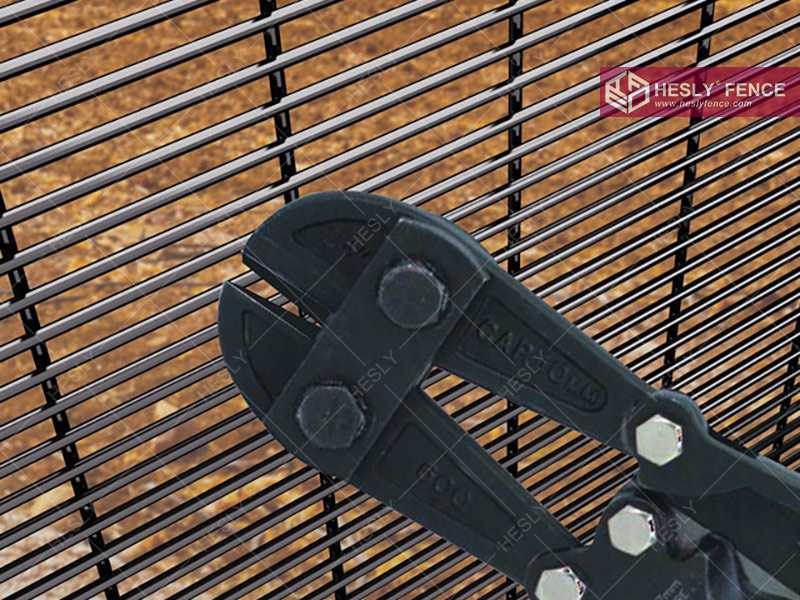

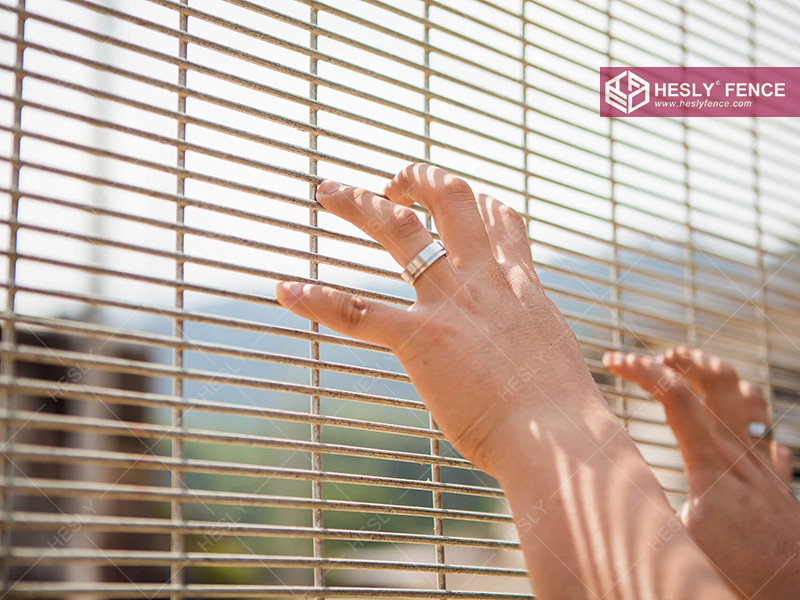

Anti-Climb The small aperture 76x12mm clear view panel makes it virtually impossible to climb.	Anti-Cut With the space being a 12mm gap, it becomes difficult to cut or use bolt cutters.	High Quality Fence Our products hold the highest standard of grading, if it does not make the grade it will be scrapped.
Different Color Options We can cater for any colour desired.	CCTV Optimized Clear View Mesh panels are optimized for clear visual viewing beyond the fencing border.	Customer Care Our quality service continues long after the installation is complete. We like referral work from our previous clients.

• Resistance to Vandalism: 358 anti-climb rigid mesh fencing has finger-resistant apertures combined with 4mm wire diameter provides a substantial barrier that is difficult to climb and penetrate. It is practically impossible to cut the wires on 358 using conventional bolt or wire-cutters.
• Stability: Due to its rigidity and minimal wind resistance, 358 is very stable, making it ideal for use with electronic alarms and when strain tension on end anchors cannot be achieved such as roof tops and walkway protection.

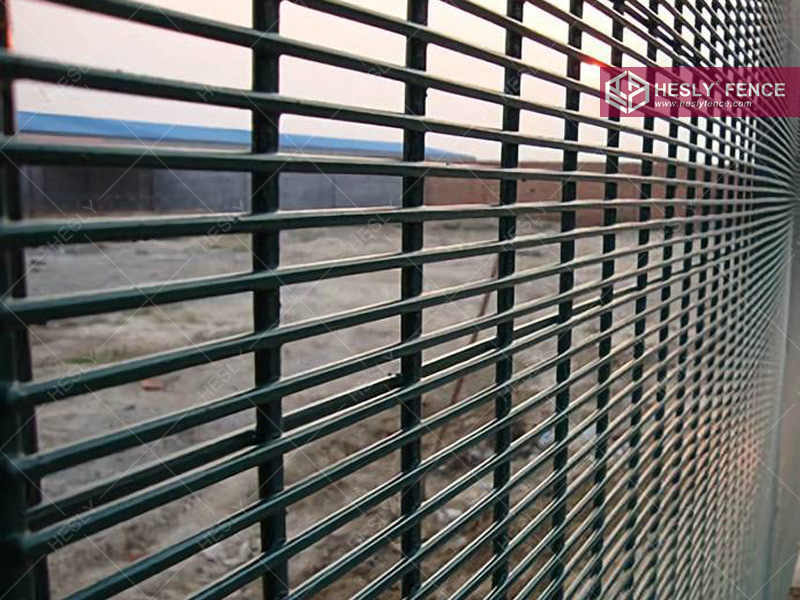

• Good Viewing Visibility: In spite of the small mesh aperture the see-through characteristics of 358 remain unimpaired when viewed head-on and even at an angle to the fence. This is particularly important for clear camera surveillance.

• Durability: 358 offers low maintenance, long life protection. Hampden Fence offers a 5 Year Warranty on 358 anti-climb rigid mesh fencing.

• Unique Double Vertical Design: 358 rigid mesh fencing is an outstanding deterrent to intruders, thanks to its superior design and inherent anti-climb properties. The unique Double Vertical design means 358 delivers significantly more strength, while retaining the ability to see through the product for effective visibility.

  The unique Double Vertical design offers outstanding rigidity and low wind resistance, making it ideal to use with electronic detection systems and alarms.

• Galvanised After Fabrication: Unlike other anti-climb fencing products, 358 anti-climb rigid mesh fencing is galvanised after fabrication. This guarantees all welded joints are protected from exposure to moisture, effectively eliminating the chance of weld-point rust to occur, ensuring unparalleled product quality and enhanced longevity.

  As well as being highly attractive visually, 358 anti-climb rigid mesh is imported in bulk order by our supplier, ensuring the product is also available at a very attractive price.

• Outstanding Versatility: 358 anti-climb mesh fencing is ideal for everything from high-security installations (prisons, military compounds and power facilities) through to high end-end architectural applications thanks to in style & strength, and superior anti-climb (yet visibility-friendly) properties. Depending on your requirements, 358 anti-climb rigid mesh fencing can be custom ordered to measure. Mesh panels can also be ordered in a black steel finish.

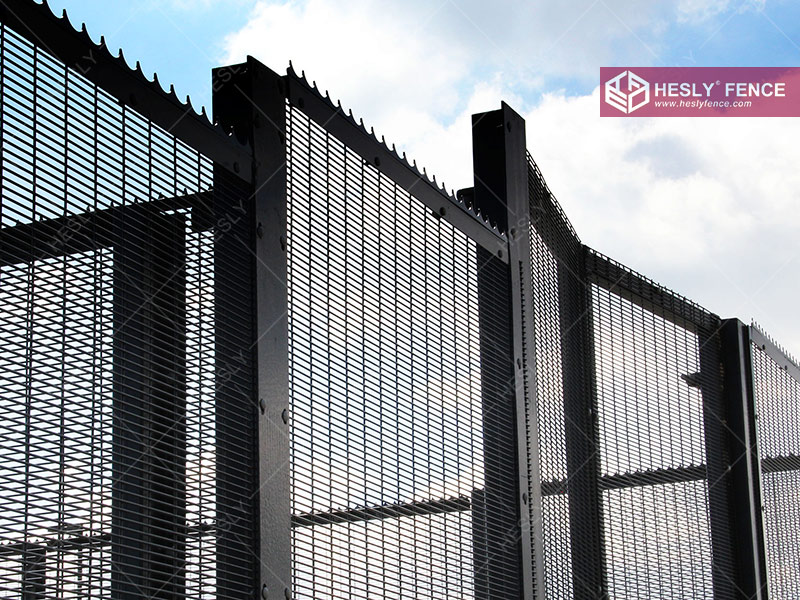

Photos Gallery - 358 Anti-climb Security Fence System

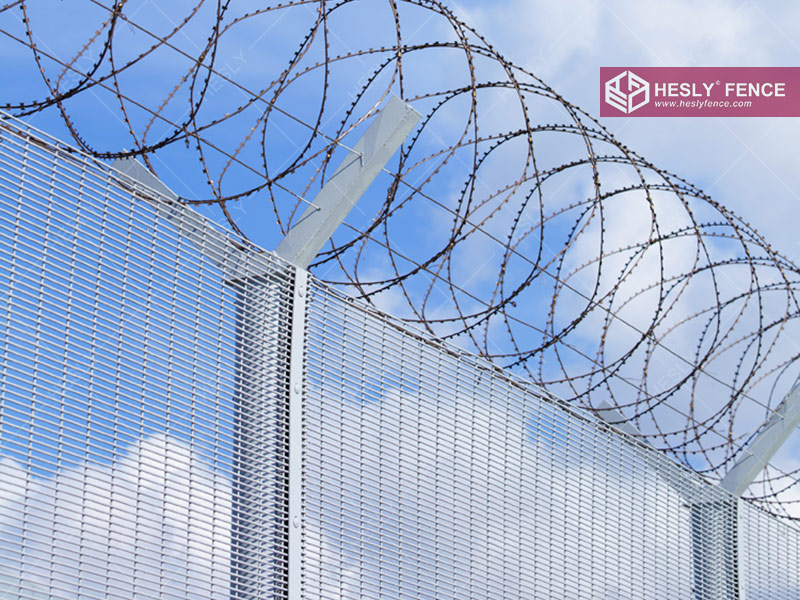

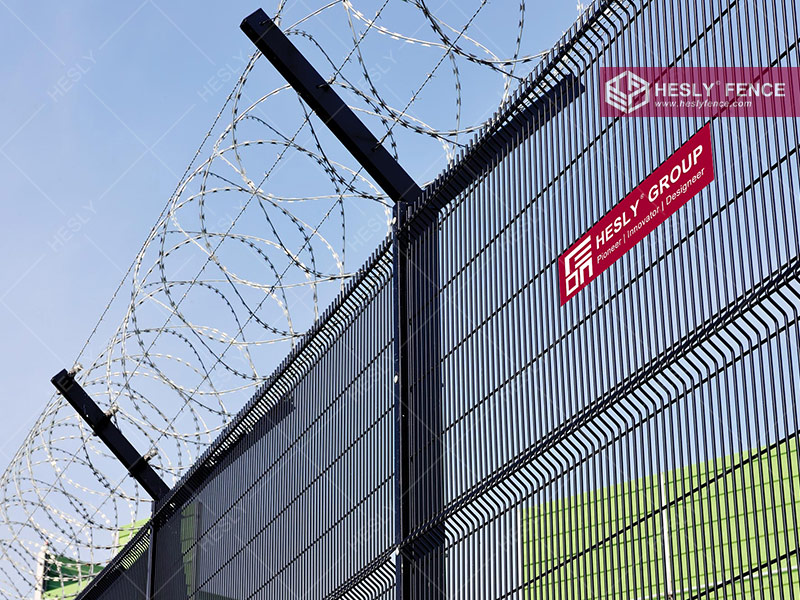

This high security mesh fence is widely used in prison, airport, military security area, border line etc.

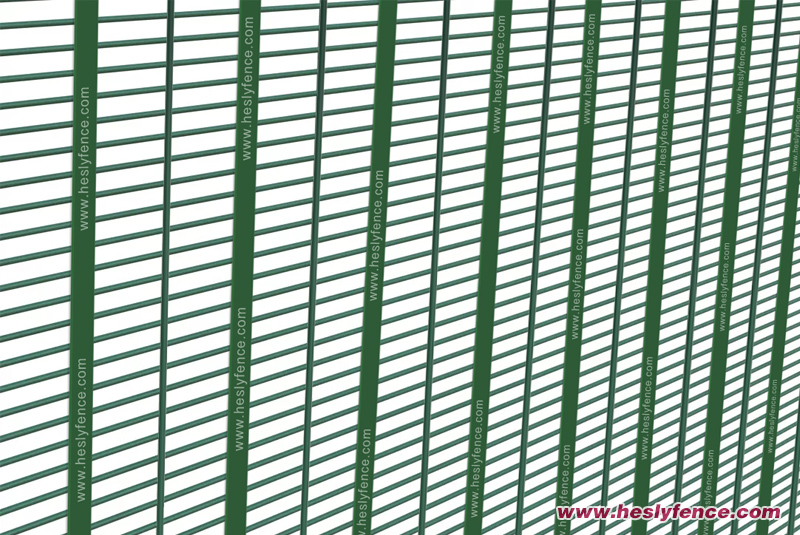

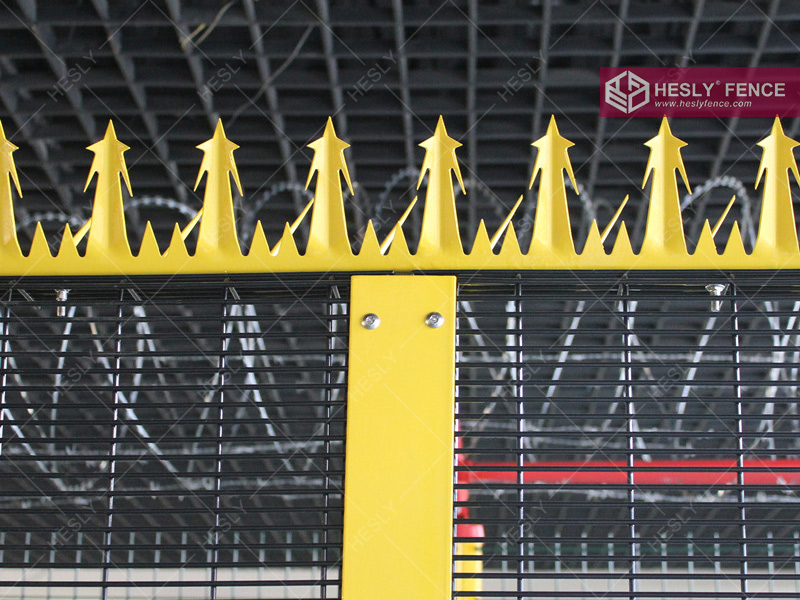

358 Security Mesh Fence	358 Anti-climb Mesh Fencing	358 Anti-cut Fence Panels
Clear VU Mesh Fencing	High Security Fence Panels	Clear View Mesh Wire Fencing

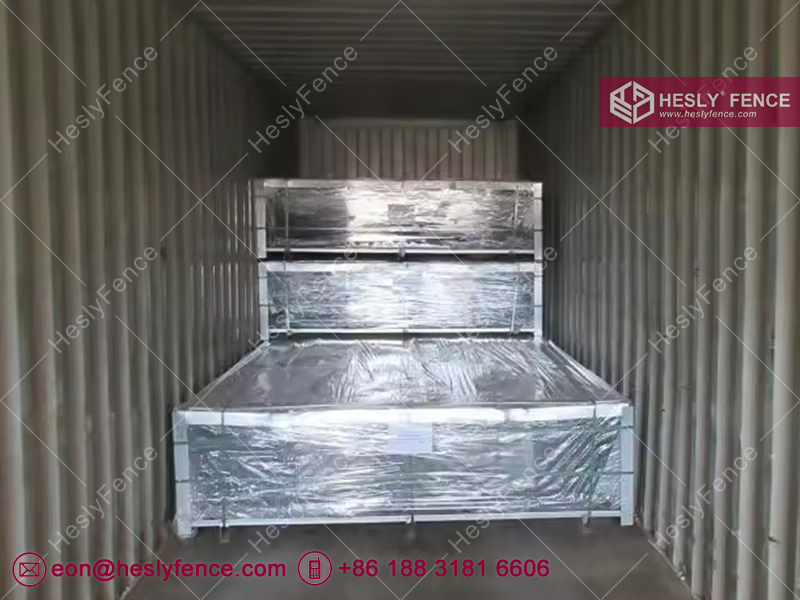

Package & Delivery

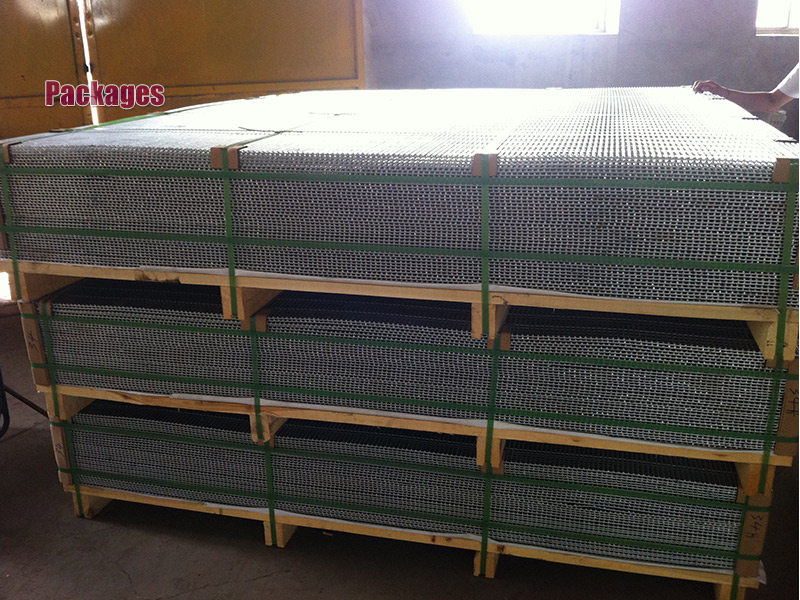

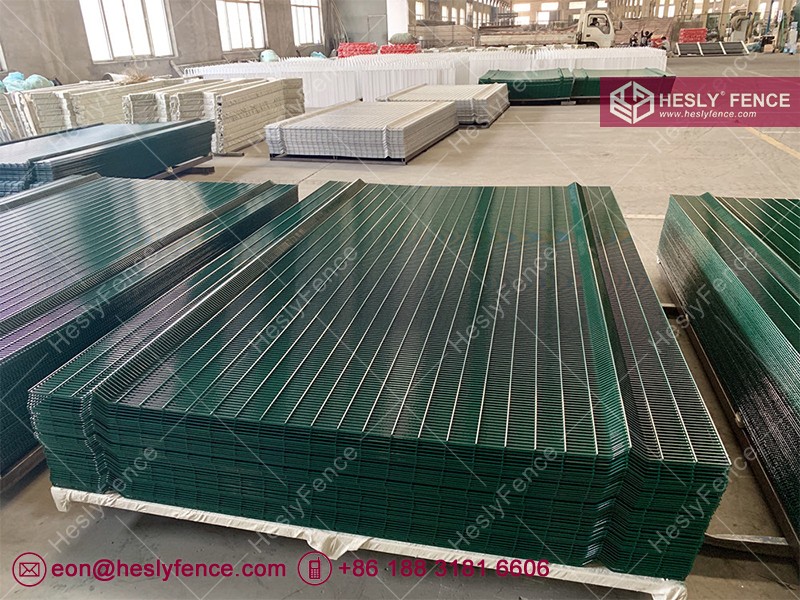

In general, we package the 358 mesh panels with steel pallets. It can be unloaded easily with forklift and save unloading cost and time.

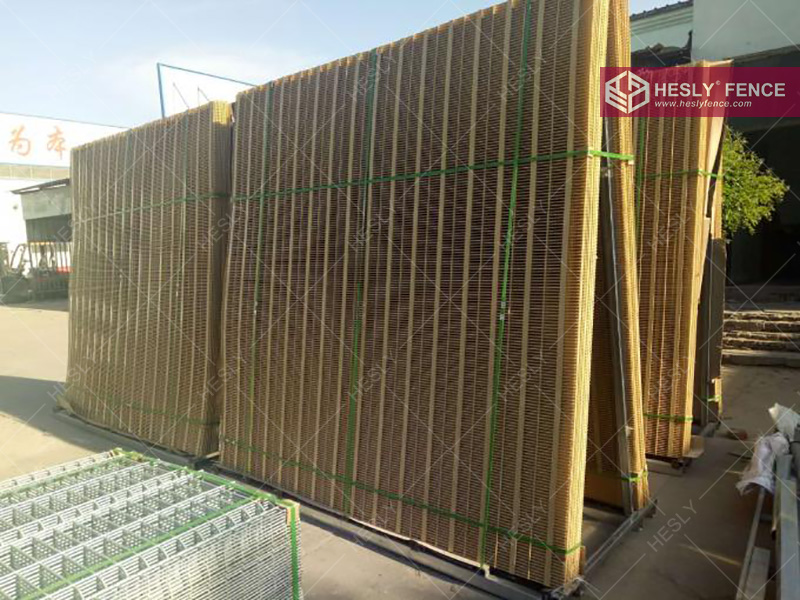

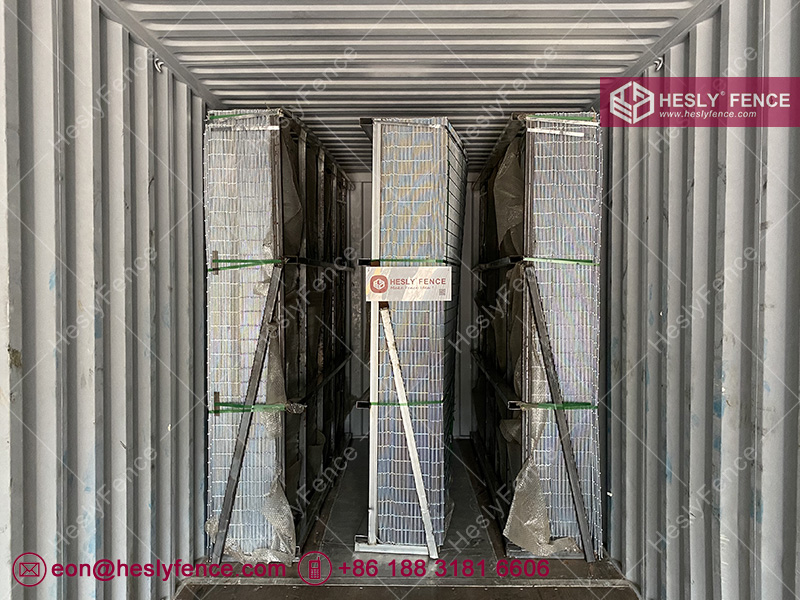

If both the height and width of the fence panels are bigger than 2.30m, we load them in bulk or package with vertical pallets. If load in bulk, a full container can load more mesh panels; if load with verticel pallets, a full cotainer can load less than in bulk.

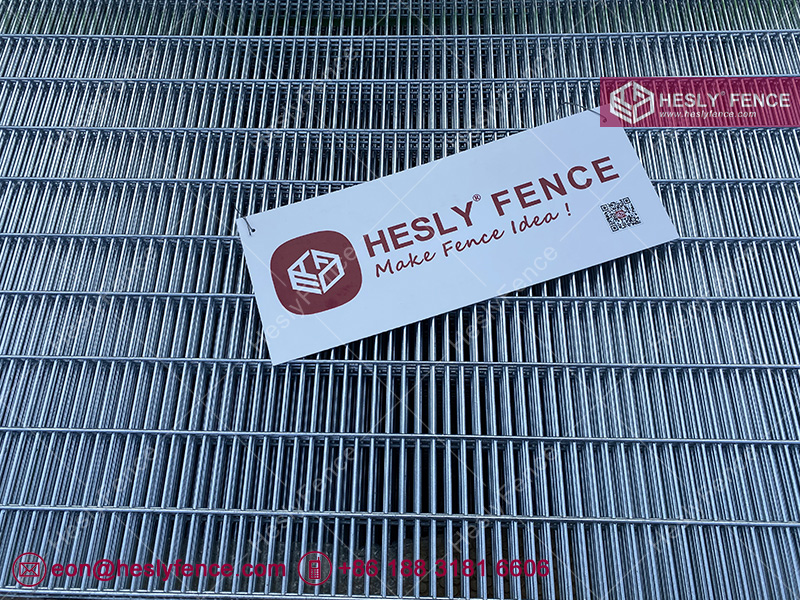

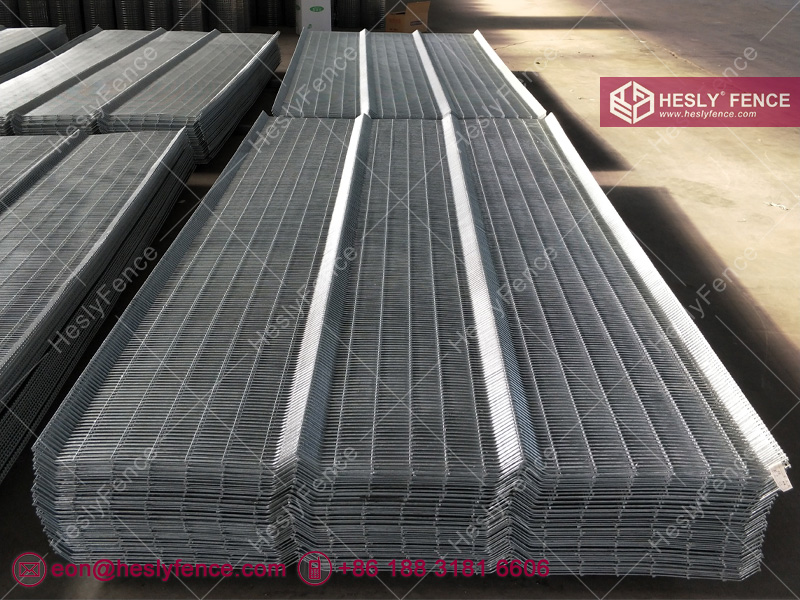

HDG 358 Mesh Fence Panel	Package In Vertical Pallet	Package In Pallets

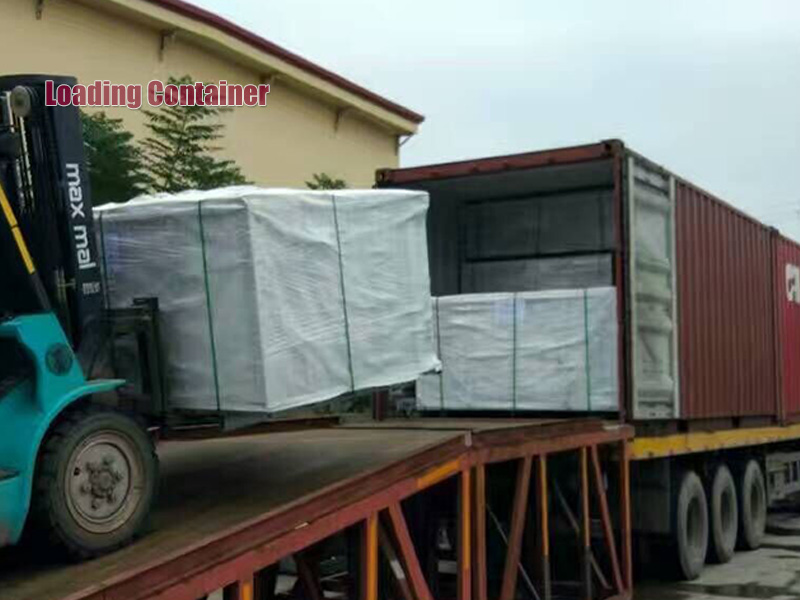

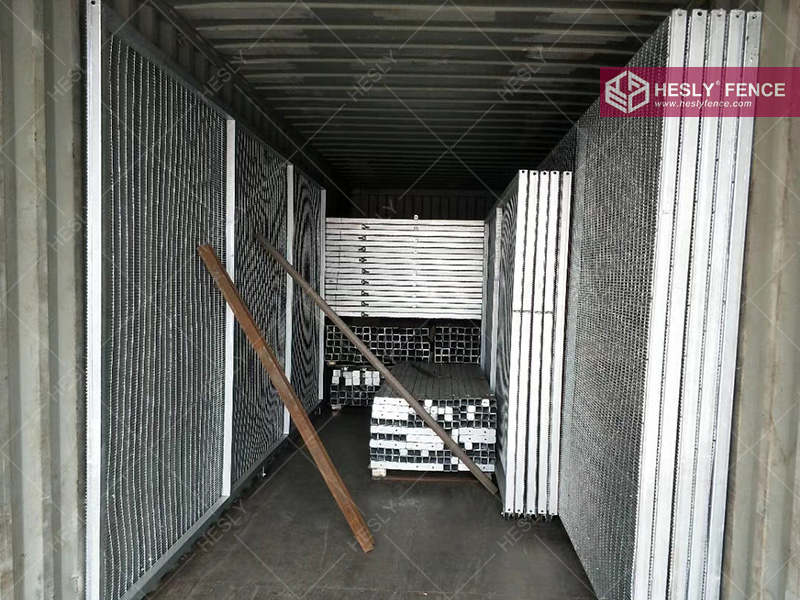

Container Loading	Container Loading	358 Anti-climb Mesh Fencing
