Star Picket / Y Post

HS Code: 73089000

Place of Origin: Hesly Fence, CHINA

Brand: HESLY^®

Certification: ISO9001, SGS etc.

Payment & Shipping Terms

MOQ: 1000 pcs.

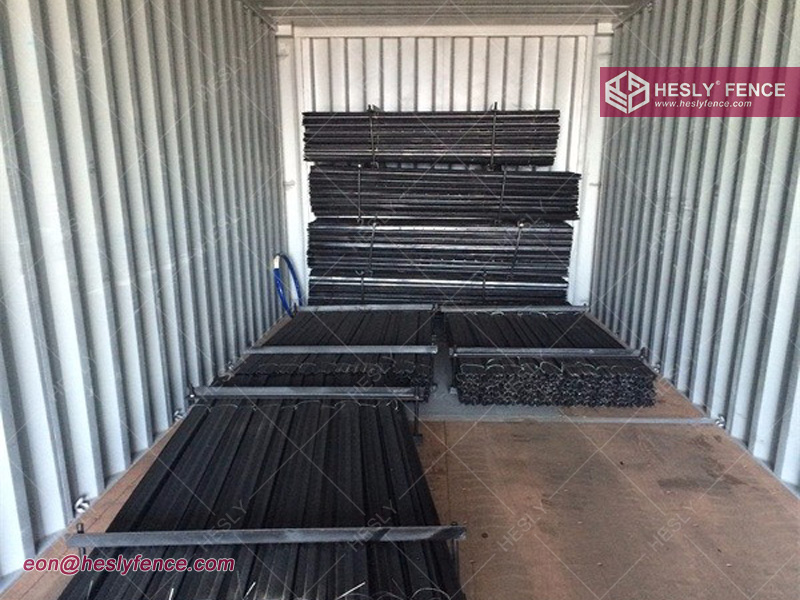

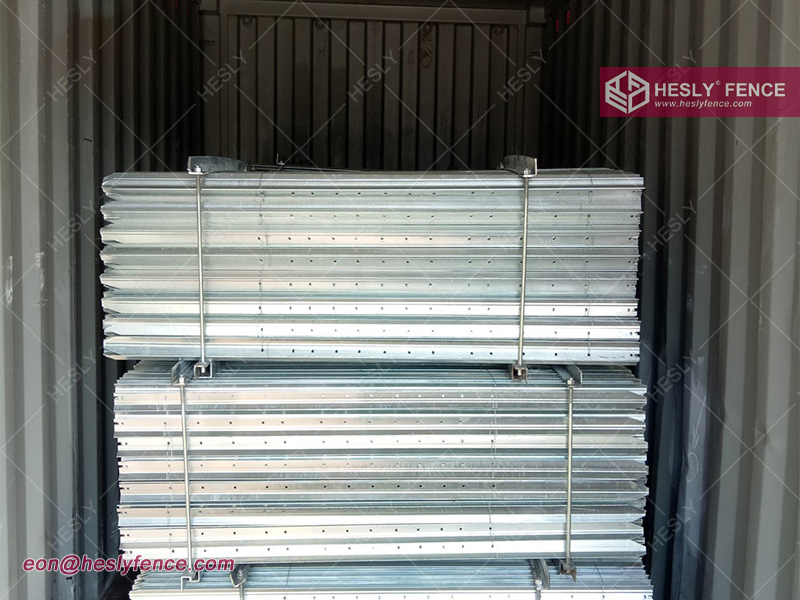

Package Details: Pallet

Payment Terms: T/T; L/C

Get a quote Download

Tags:Star Picket Factory | Y Fence Post

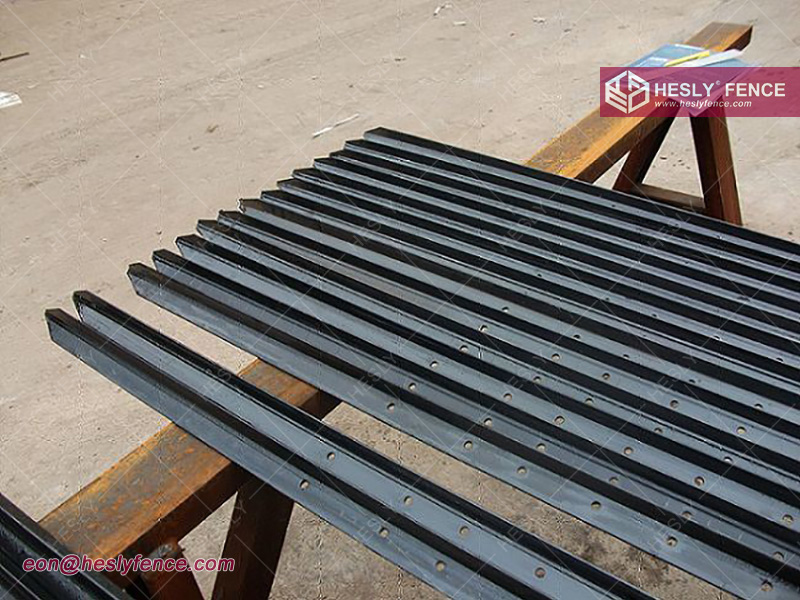

Star Picket / Y Post

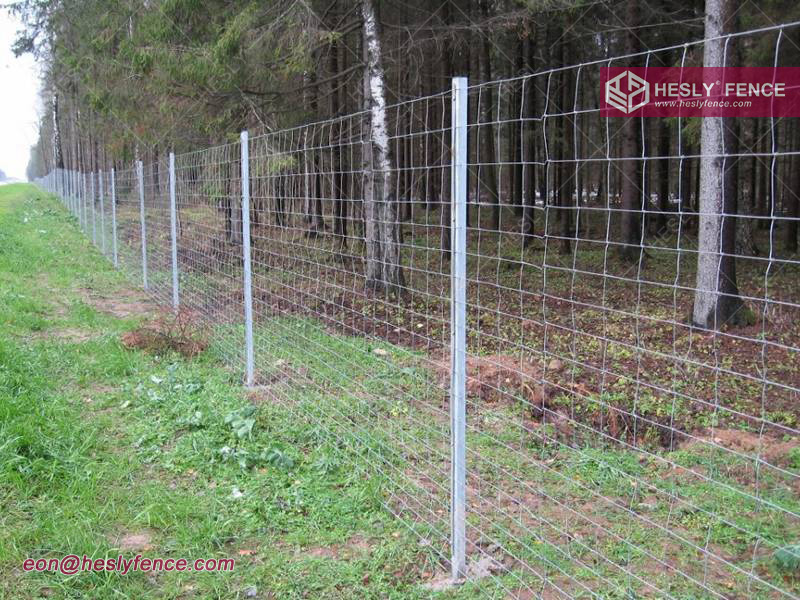

Star pickets can be hammered simply into the ground using a star picket driver, which can be purchased ready-made, weighted and with handles. Also known Metal Posts, Metal Pickets, Steel Posts, Steel Pickets & field fence post.

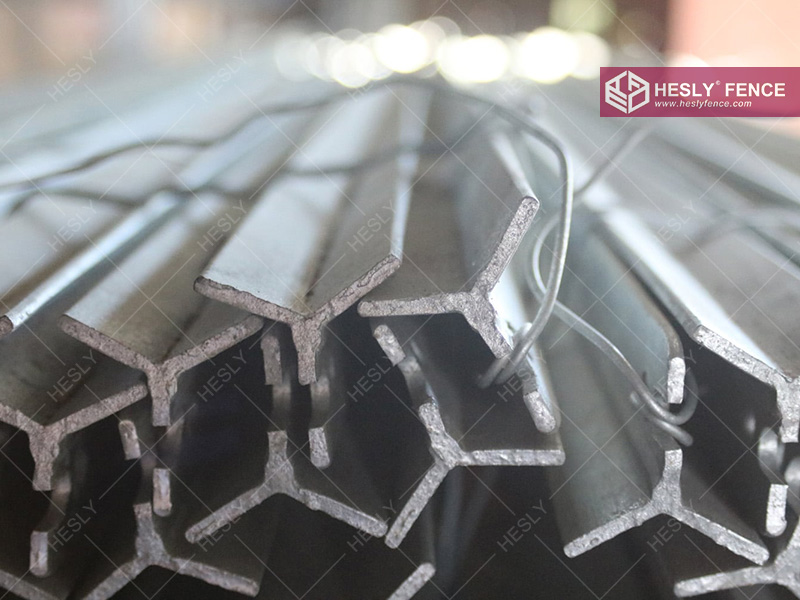

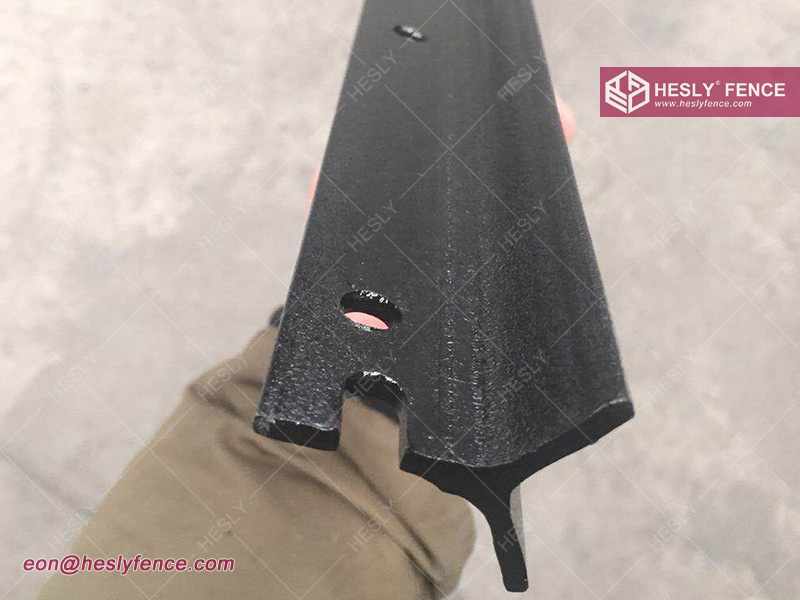

Three-pointed star shaped cross section.

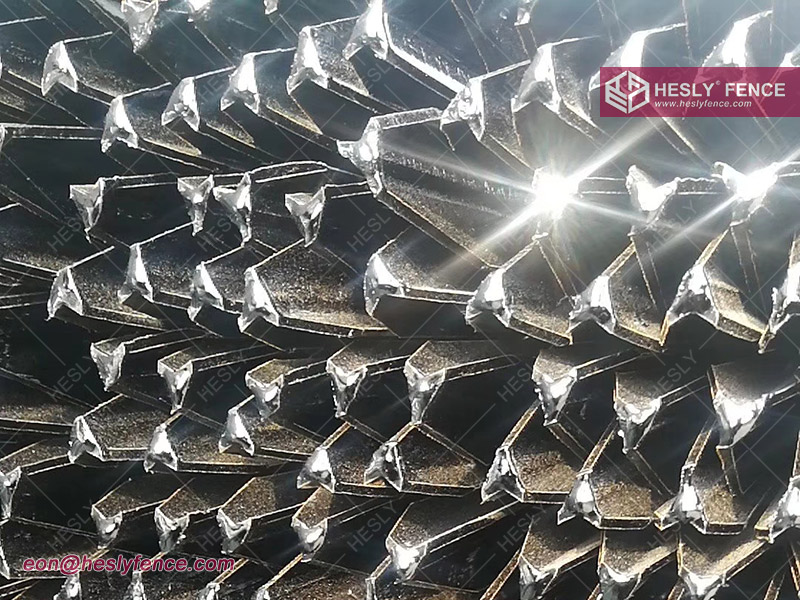

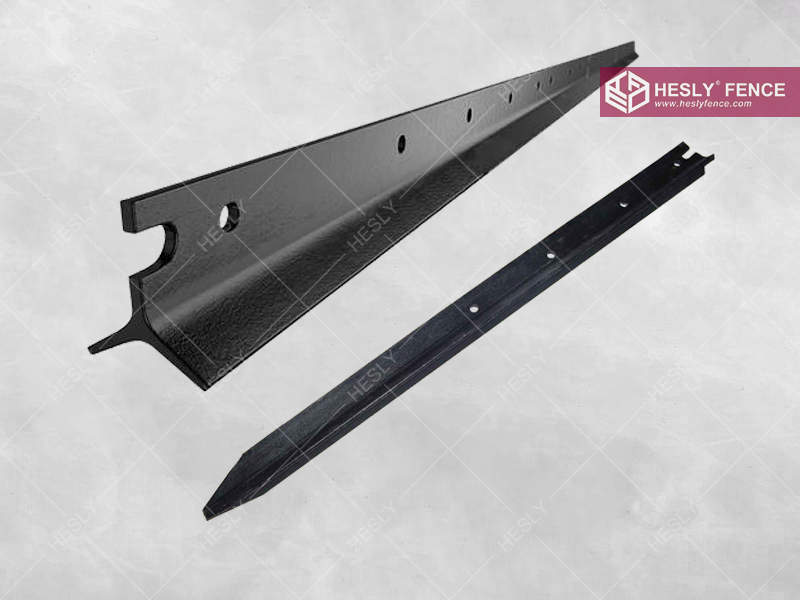

Tapered ends make it easy to be installed.
Plain head is engineered for easy hammering the post into ground.
High quality and stability, star pickets are popular with most Australians, New Zealanders.

Popular Types

The star pickets have different corrosive resistance surface for longer service life and durable performance.

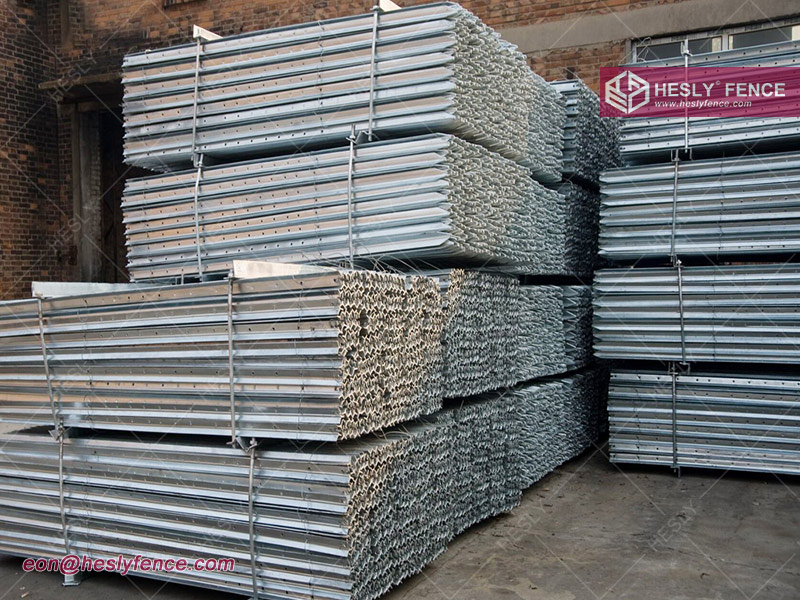

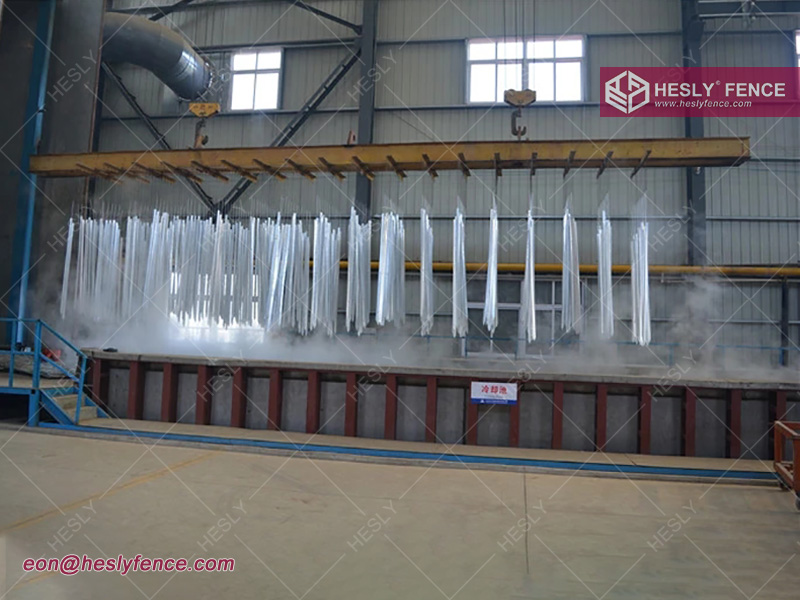

Galvanised star pickets.

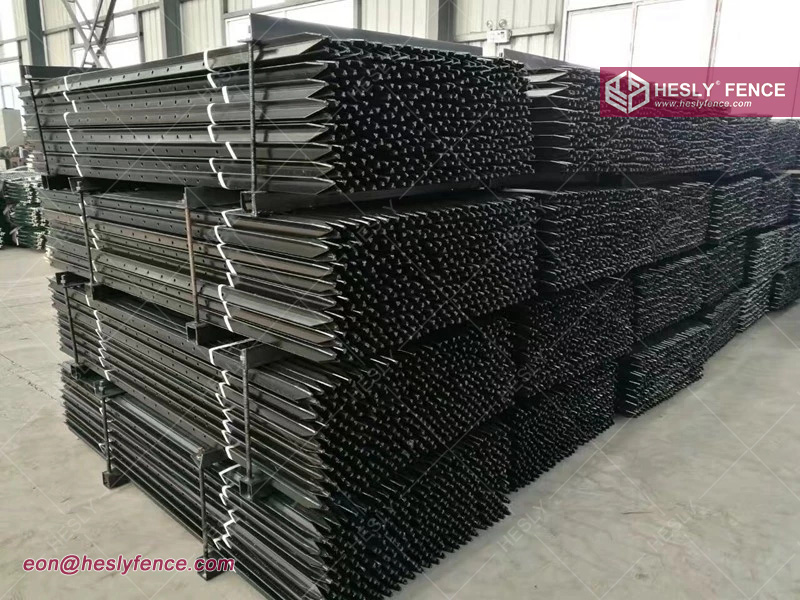

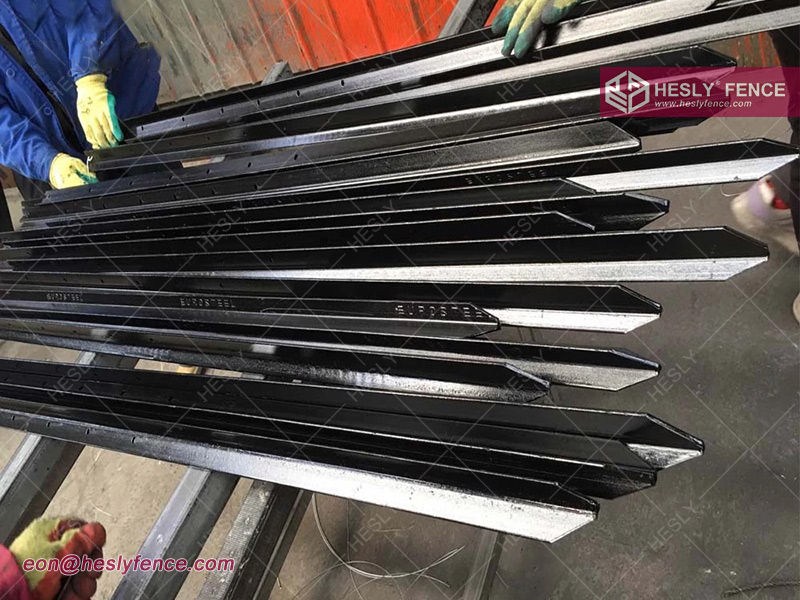

Black bitumen painting star pickets.

Specification Sheet - Star Picket / Y Post

Common Specification - Star Picket / Y Post
Star Picket Weight	2.04kg/m	1.90kg/m	1.86kg/m	1.58kg/m
Size	28×28×30mm	28×28×30mm	28×28×30mm	28×28×30mm
Thickness	3mm	2.6mm	2.5mm	2.3mm

Hole Numbers - Star Picket / Y Post
Length of Fence Post	0.45m	0.60m	0.90m	1.35m	1.50m	1.65m	1.80m	2.10m	2.40m
Holes (Australia)	2	3	5	11	14	14	14	7	7
Holes (New Zealand)				7	7	7	8

Weight / M	PCS / Ton
Weight / M	0.45m	0.60m	0.90m	1.35m	1.50m	1.65m	1.80m	2.10m	2.40m	2.70m	3.00m
2.04kg/m	1089	816	544	363	326	297	272	233	204	181	163
1.90kg/m	1169	877	584	389	350	319	292	250	219	195	175
1.86kg/m	1194	896	597	398	358	325	298	256	224	199	179
1.58kg/m	1406	1054	703	468	422	383	351	301	263	234	211

Star picket standard specification
Length (cm)	Hole number	Hole distance (mm)	2.04kg/m	1.86kg/m	1.58kg/m
45	2	25/30, 100	0.918 kg	0.837 kg	0.711 kg
60	3	25/30, 120, 120	1.224	1.224	0.948
90	5	25/30, 120, 120, 120, 120	1.836	1.836	1.422
135	11	25/30, 100, 100, 100, 60, 120, 75, 75, 80, 70	2.754	2.511	2.133
AUS150	11	25, 100, 100, 100, 60, 120, 75, 75, 80, 70	3.060	2.790	2.37
NZL 150	7	30, 204, 178, 152, 27, 127, 127	3.060	2.790	2.37
AUS165	14	25, 130, 100, 100, 100, 60, 120, 75, 75, 80,75,75,60,95	3.366	3.069	3.366
NZL 165	7	30, 204, 178, 152, 127, 127, 127	3.366	3.069	3.366
AUS180	14	25, 130, 100, 100, 100, 60, 120, 75, 75, 80,70,75,60,95	3.672	3.348	2.844
NZL 180	8	30, 204, 190, 152, 127, 114, 100, 100	3.672	3.348	2.844
210	7	25, 275, 300, 300, 300, 300	4.284	3.906	3.318
240	7	25, 275, 300, 300, 300, 300	4.896	4.464	3.792

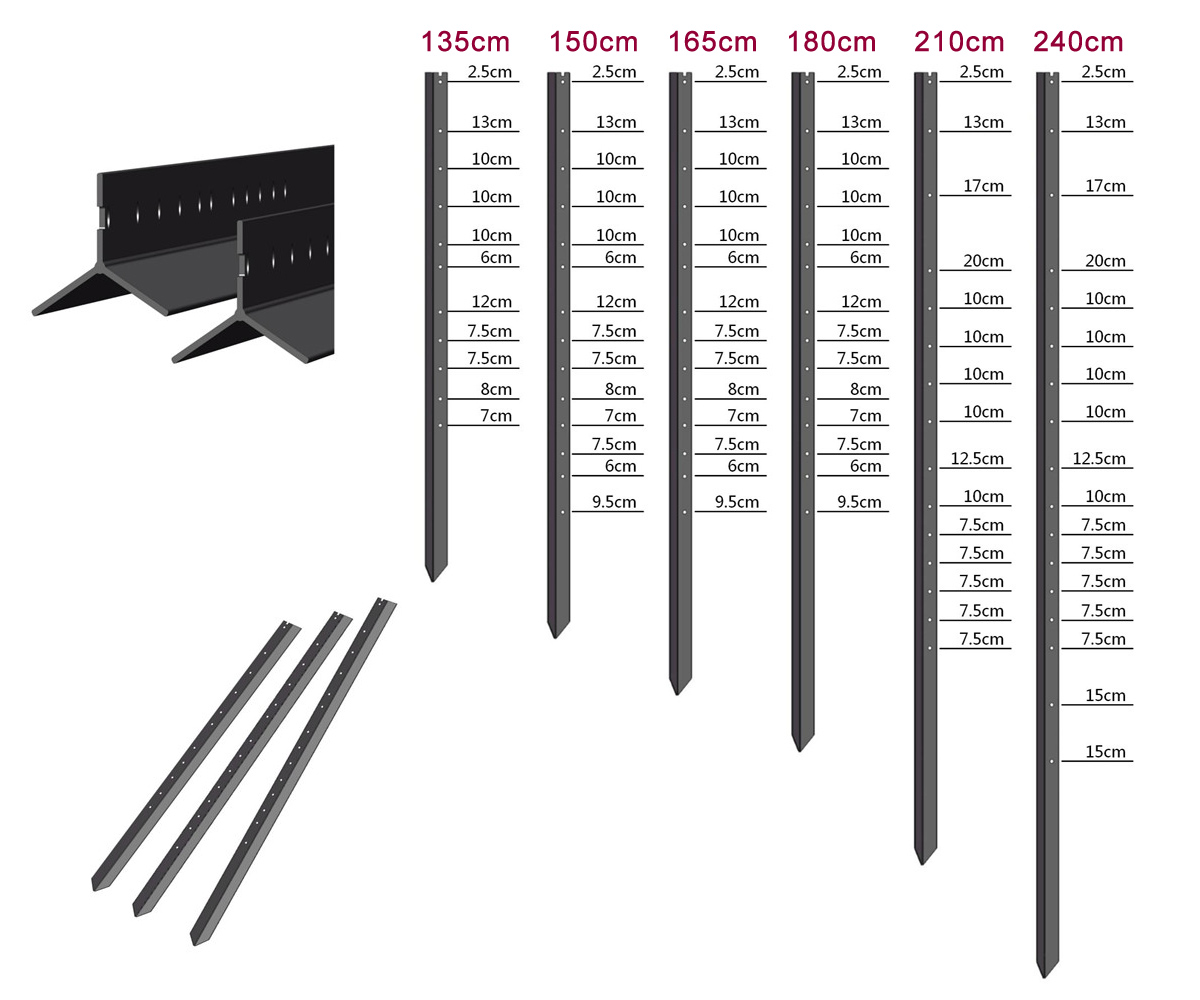

ILLUSTRATION DRWING
